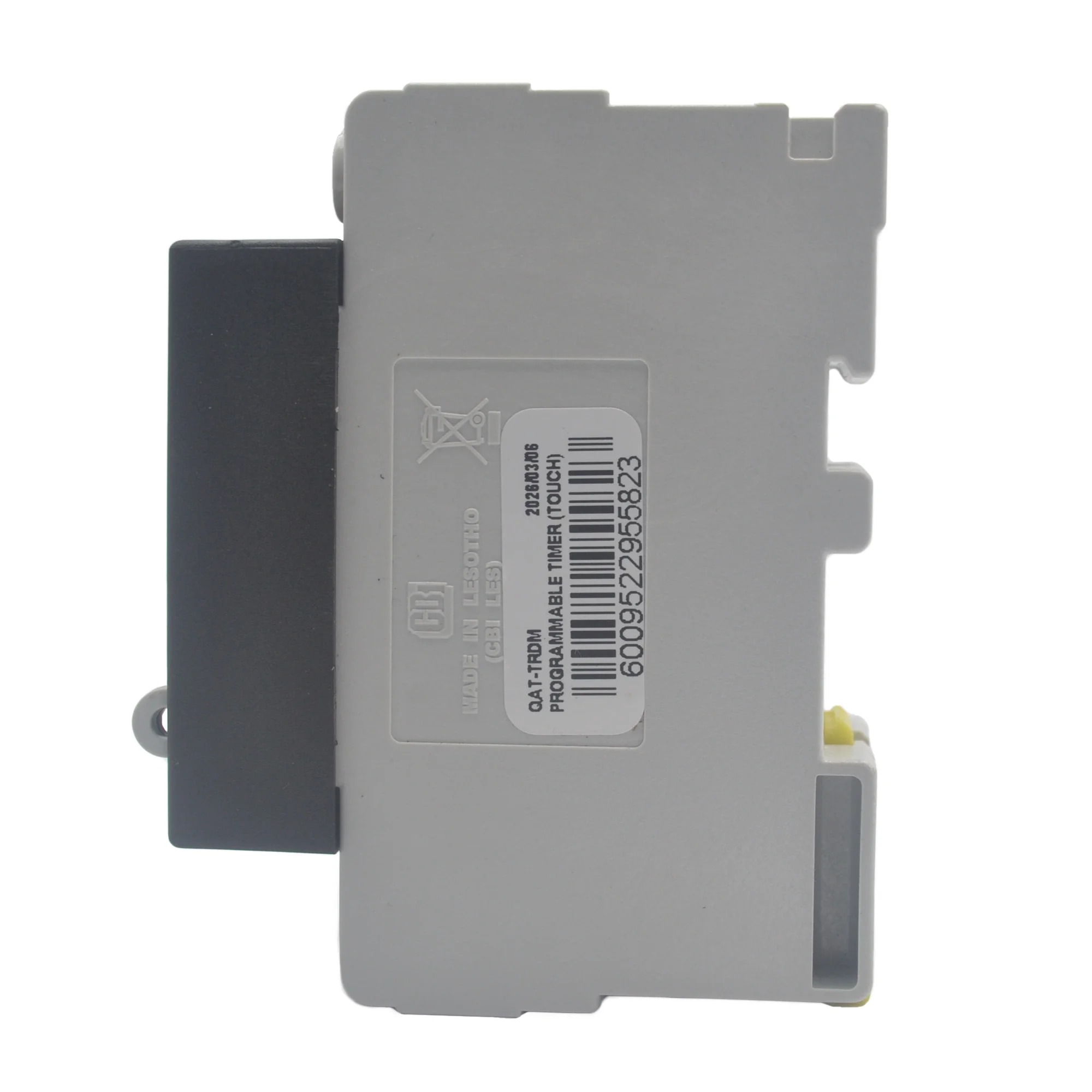

CBI CQAT-R-DM Electronic Time Switch with 24 h Reserve (230/240 V AC, Dual Rail) - Image 1

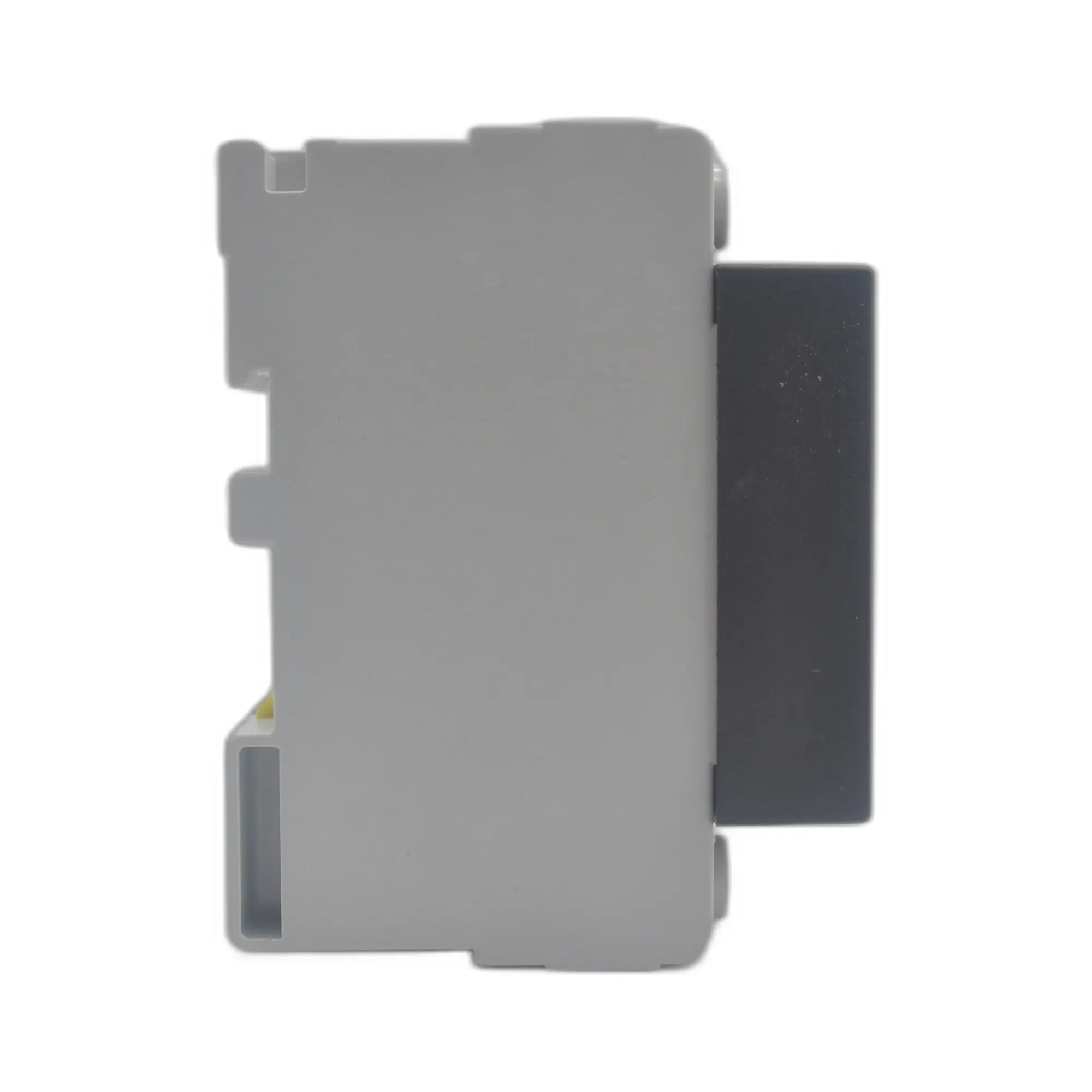

CBI CQAT-R-DM Electronic Time Switch with 24 h Reserve (230/240 V AC, Dual Rail) - Image 2

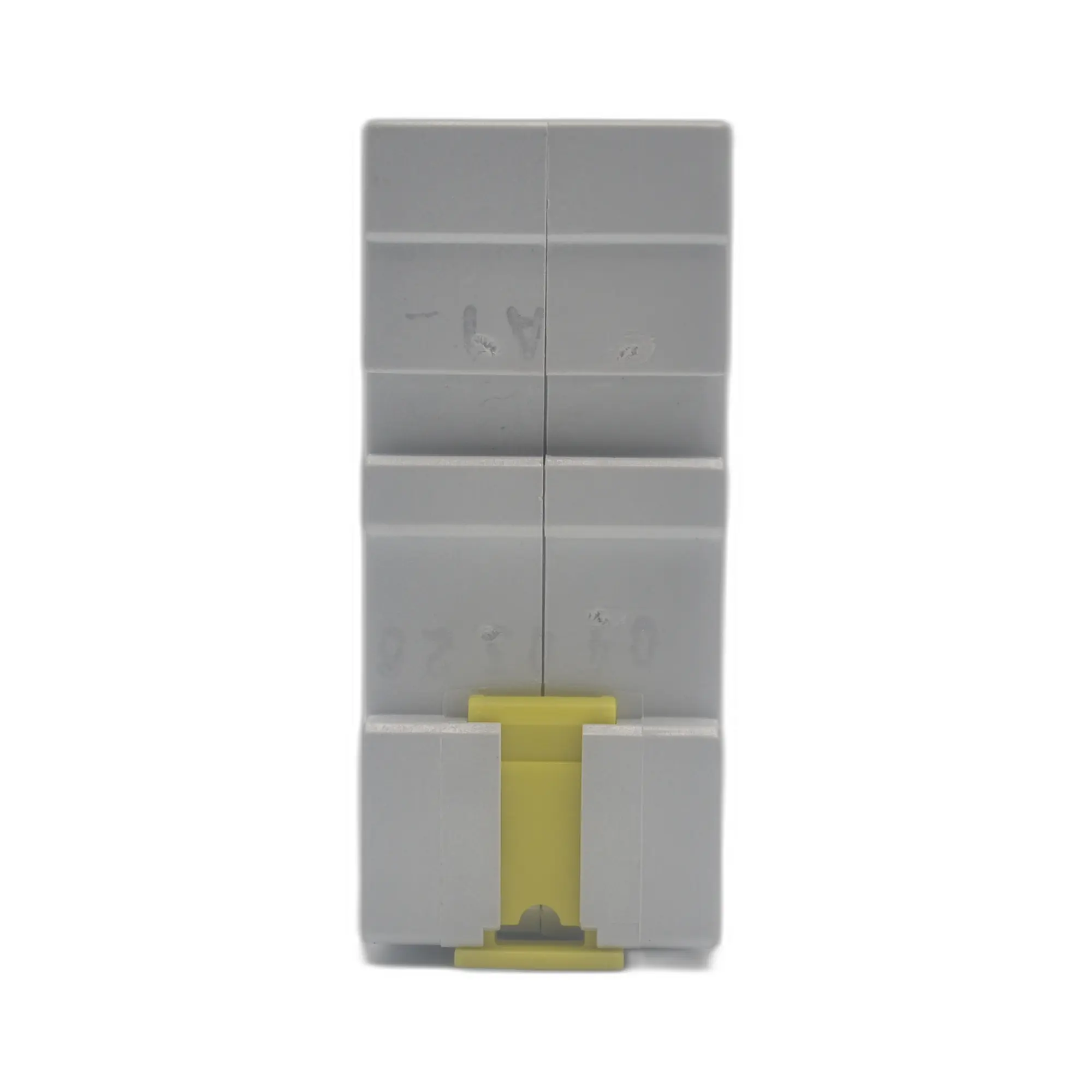

CBI CQAT-R-DM Electronic Time Switch with 24 h Reserve (230/240 V AC, Dual Rail) - Image 3

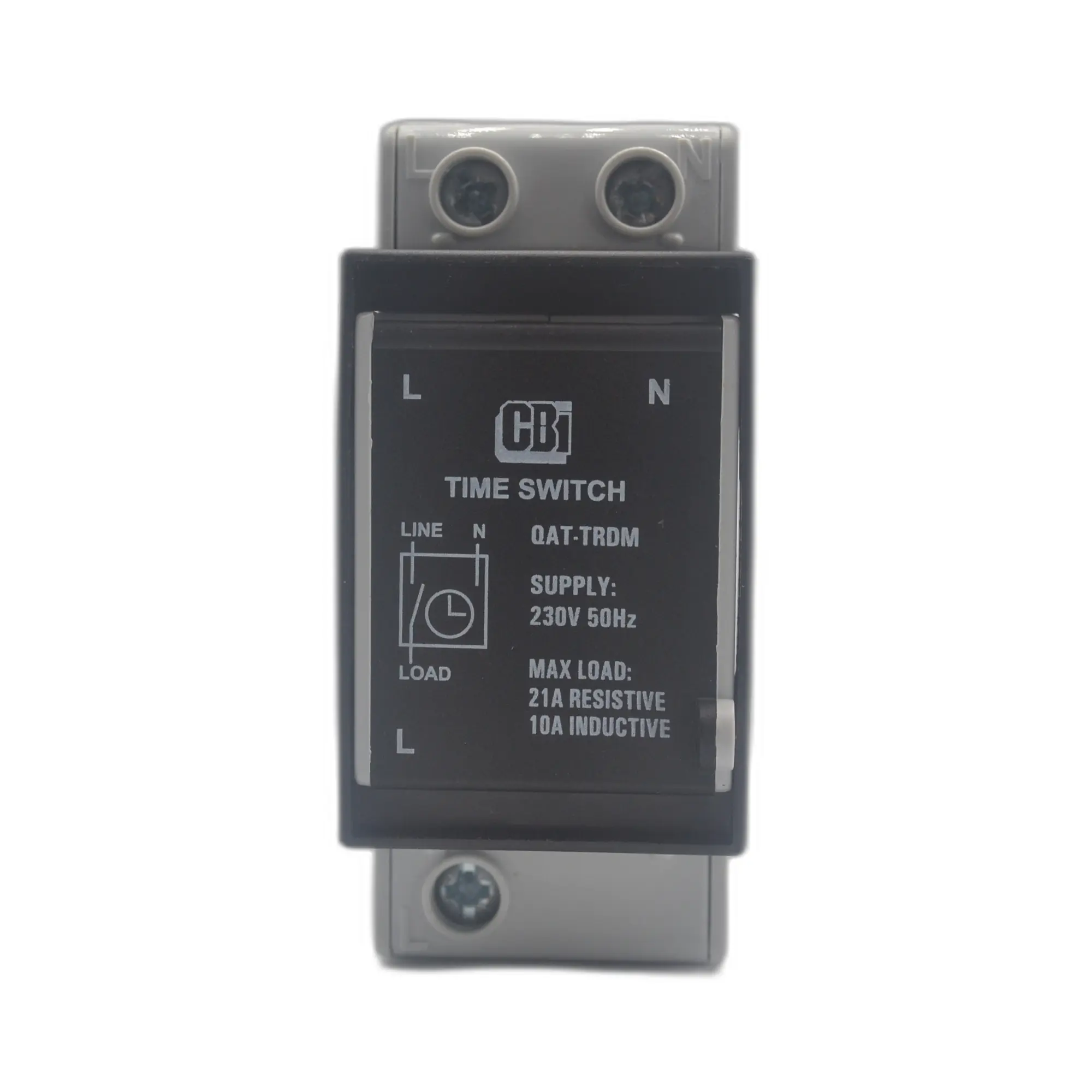

CBI CQAT-R-DM Electronic Time Switch with 24 h Reserve (230/240 V AC, Dual Rail) - Image 4
CBI CQAT-R-DM Electronic Time Switch with 24 h Reserve (230/240 V AC, Dual Rail) - Image 5

CBI CQAT-R-DM Electronic Time Switch with 24 h Reserve (230/240 V AC, Dual Rail)

R934,70

Category:
CBI

Description

CBI CQAT-R-DM Electronic Time Switch with 24 h Reserve (230/240 V AC, Dual Rail)

Stop Manually Switching Pumps, Lights, and Geysers

Automate routine loads like pool pumps, lights, and geysers with a programmable time switch that maintains its schedule even during power outages.

Key Features

  • Power failure reserve: 24 hours; programmed schedule is retained
  • Rated voltage: 230/240 V rms, 50 Hz
  • Maximum load: 21 A resistive; 10 A inductive
  • Mounting: Dual fit for CBi mini rail or DIN rail (remove surround)
  • Standards: SANS 60730-1 approved
  • Ingress protection: IP40 (when installed in a distribution panel)
  • Operating temperature: -20 °C to +55 °C
  • Contact endurance: Minimum 20,000 operations
  • Clock accuracy: ±3 minutes per month

Applications

  • Pool pumps
  • Lights
  • Geysers

Installation Notes

  • Isolate supply power before installing the time switch.
  • Install on either mini rail or DIN rail (remove the surround/escutcheon adapter for DIN).
  • Use a suitable contactor for loads greater than 21 A resistive or 10 A inductive.
  • Strictly obey the Line and Neutral markings during wiring.
  • CBI advises installation by a suitably qualified electrician.
