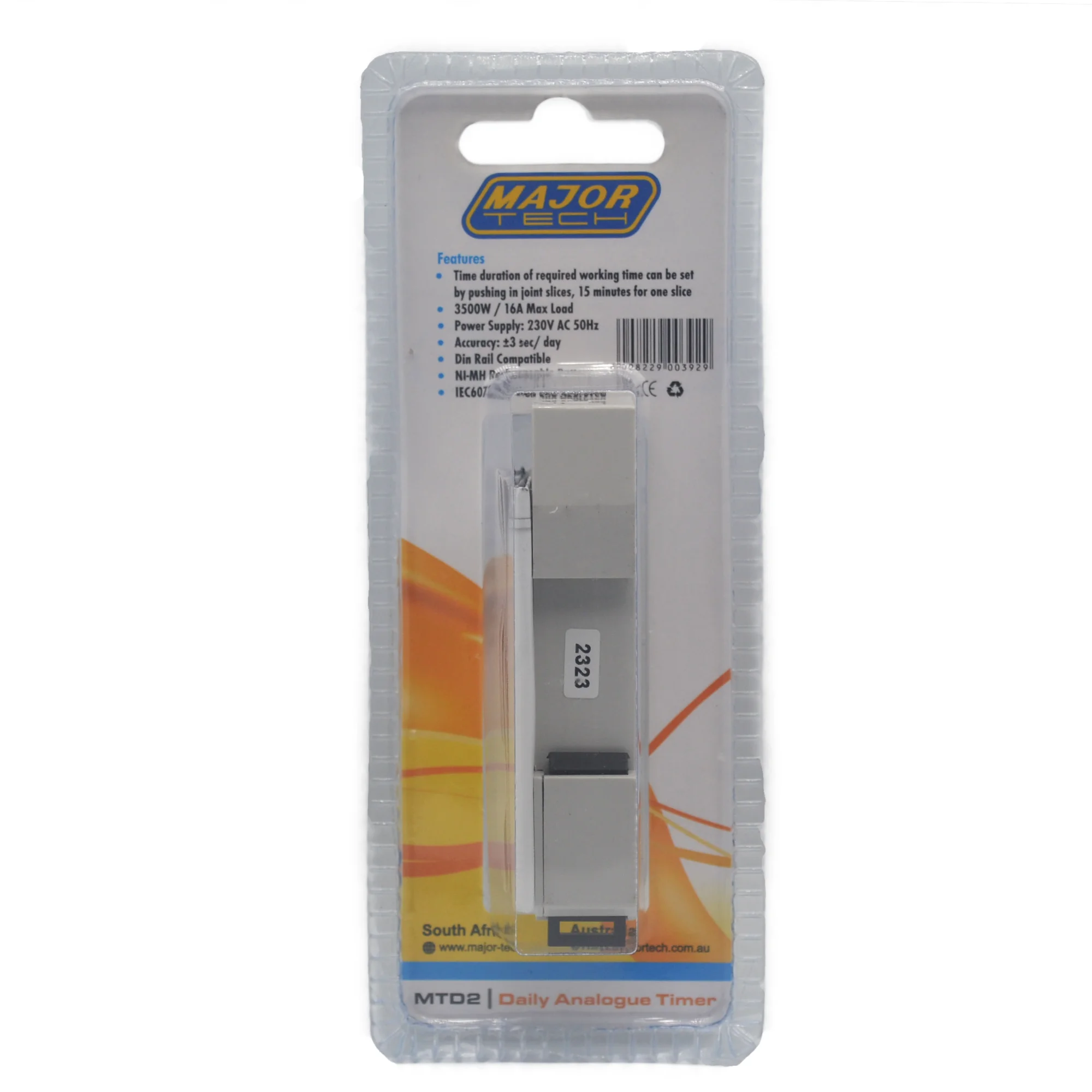

Major Tech MTD2 24-Hour Analogue DIN-Rail Timer (16A, 96 Pins, 100h Backup)

Automate Daily Loads with Confidence

Set reliable on/off schedules for geysers, lighting, pool pumps and other appliances with the Major Tech MTD2. This DIN-rail analogue time switch offers 24-hour daily programming in 15-minute steps, manual override when needed, and a 100-hour battery backup to keep schedules intact during power interruptions.

Key Features

  • 24-hour daily scheduling with 96 programmable pins (15-minute intervals)
  • Manual override with two modes: 24HR PROGRAM AUTO CONTROL or PERMANENT CONTROL ON
  • Switching contact: 16(4) A, up to 250 V AC
  • Load capability at 230 V AC: up to 3500 W (resistive) and 920 W (inductive motors)
  • Power reserve: 100 hours (battery backup)
  • Quartz movement for dependable timekeeping
  • Low consumption: 0.5 W
  • Protection: IP20; Protection Class II (as per EN60335 under correct assembly)
  • Operating temperature: -10°C to +50°C
  • Supply: 230V AC = 10% 45/60Hz
  • DIN-rail installation: 35 mm (EN 50022)
  • Dimensions: 90 x 66 x 17.5 mm

Installation Notes

  • Install by an authorized professional in distribution boards on 35 mm DIN rail (EN 50022).
  • For loads exceeding the rated capacity, use one or more magnetic contactors.
  • To minimize electromagnetic interference: avoid mounting near inductive loads; use a separate power line (with network filter if needed); fit inductive loads with suppressors (varistor or RC filter).
  • Programming: move pins to the left for ON and to the right for OFF at desired times.

Technical Specifications

  • Switching contact: 16(4) A/250 V AC
  • Power consumption: 0.5 W
  • Dial: Daily, 96 pins; minimum setting interval 15 minutes
  • Battery backup: 100 hours
  • Movement: Quartz
  • Terminal wires: 2×2.5mmq
  • Protection grade: IP20 (EN 60529)
  • Protection class: II (EN60335, correct assembly)
  • Standards: EN-60730; EC669-1
  • Temperature: Working -10°C to +50°C; Storage -25°C to +70?C
