Schneider One Pole 3A Miniature Circuit Breaker A9F64103 (Pre-Owned))

Description

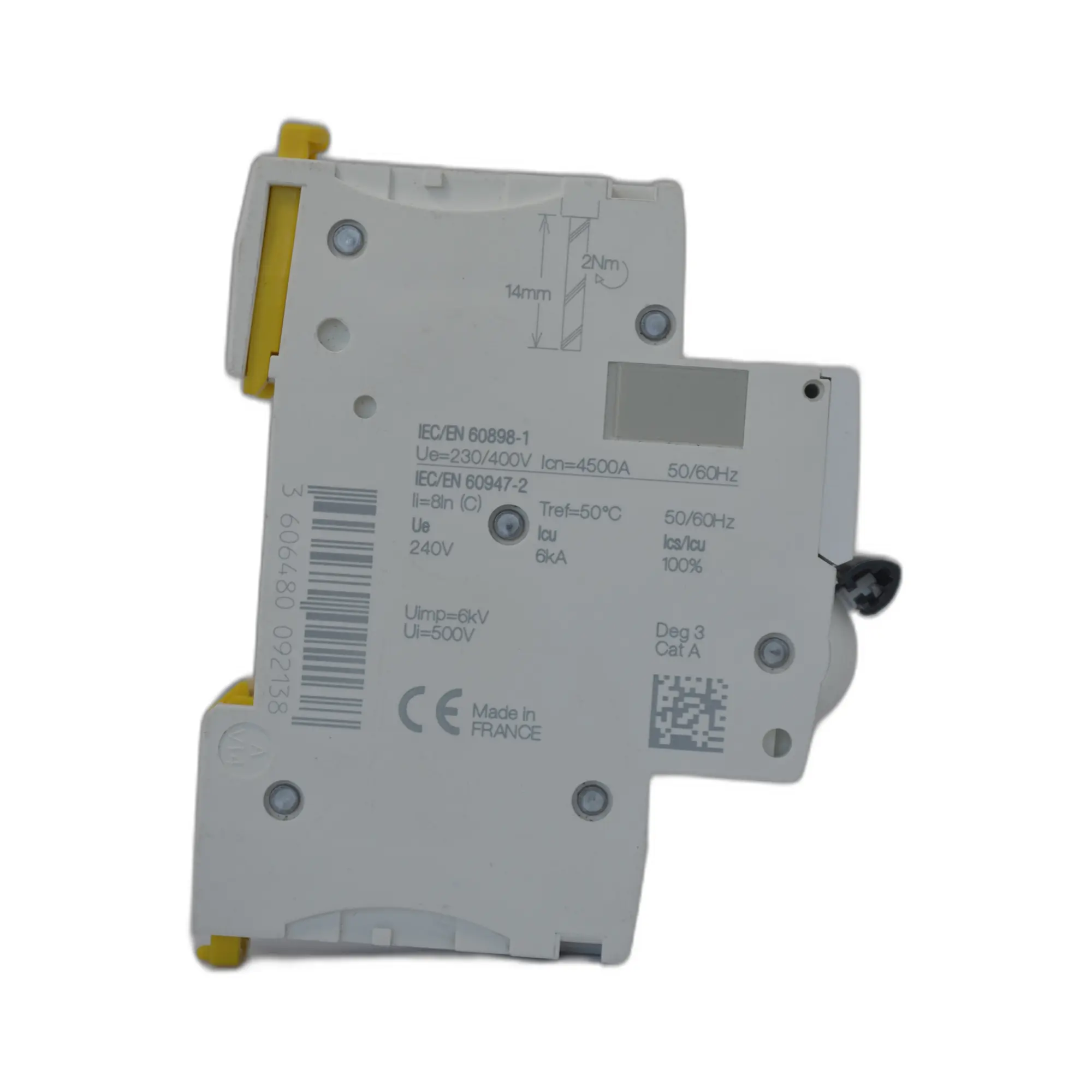

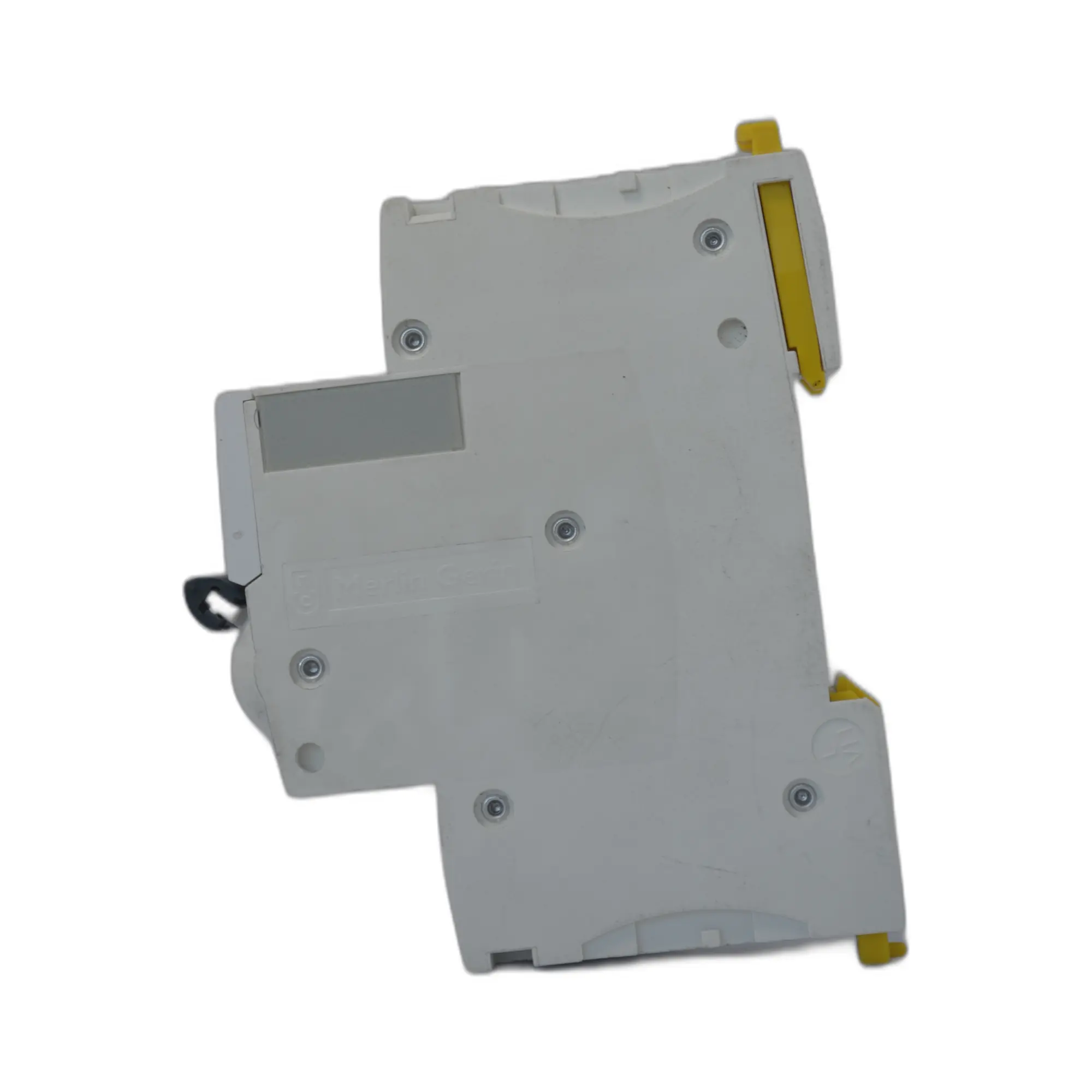

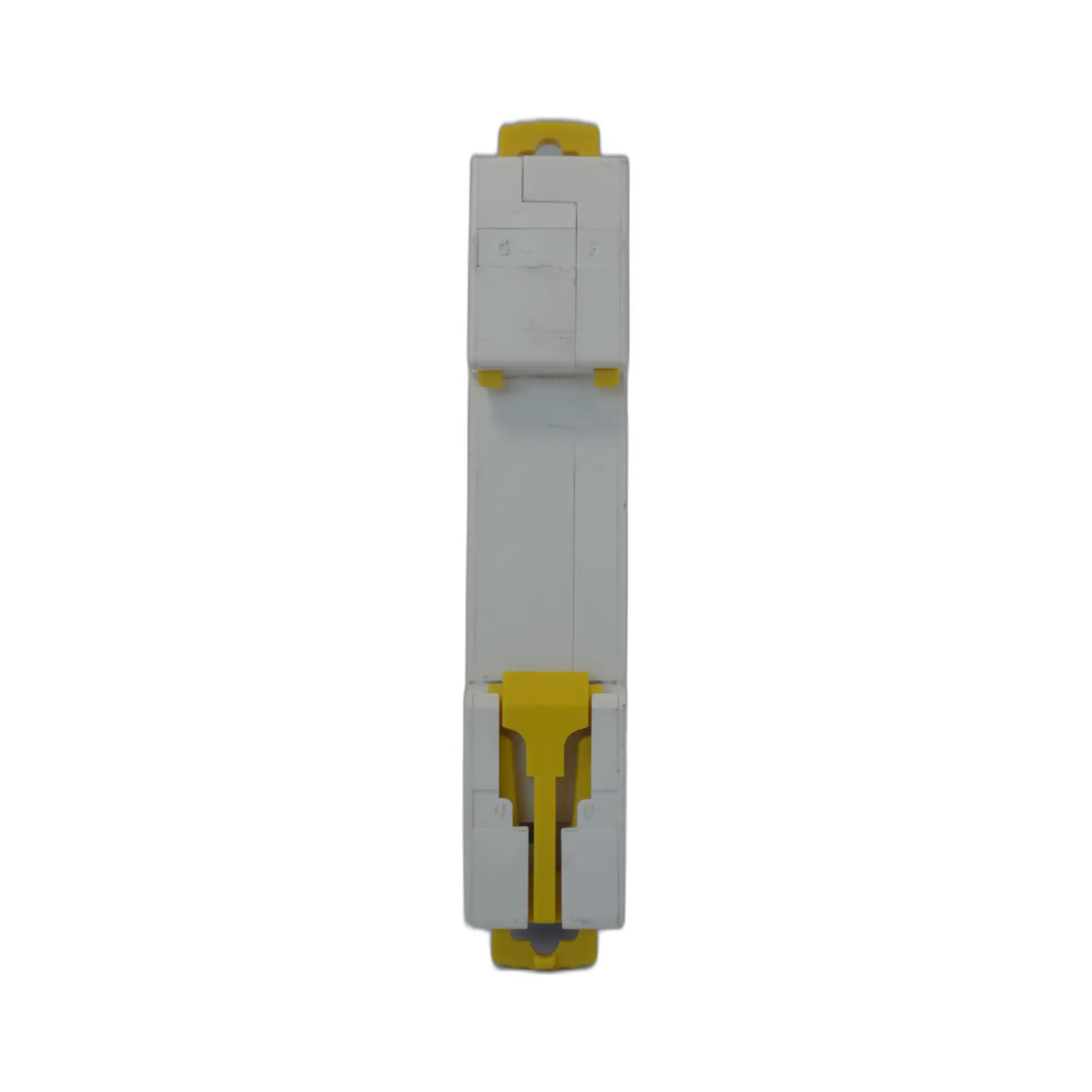

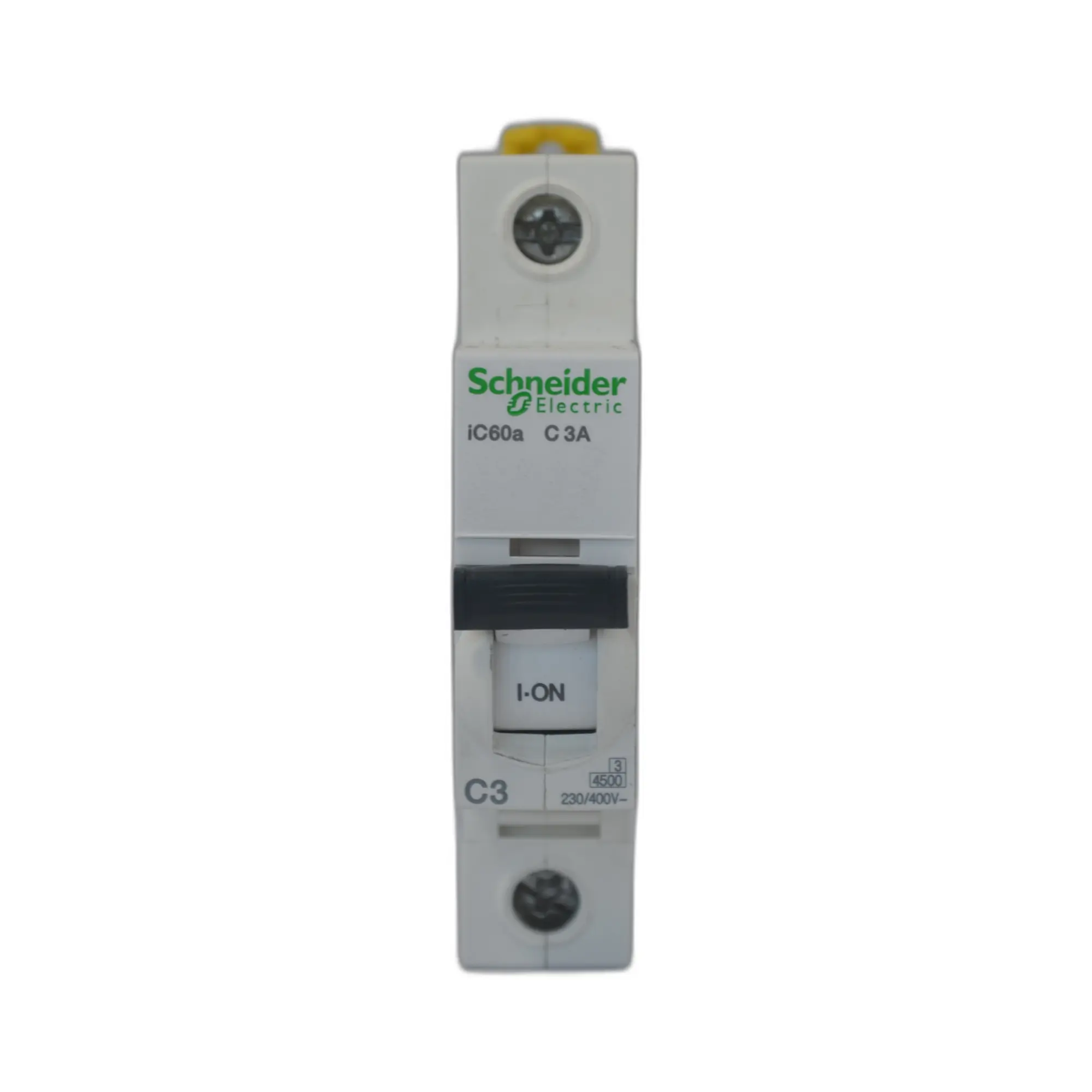

Schneider One Pole 3A Miniature Circuit Breaker A9F64103

A pre-owned Schneider One Pole 3A Miniature Circuit Breaker (A9F64103).

Pulled from a panel, tested and working accordingly to specification.

In excellent condition.

Features:

• Number of Poles: 1P
• Number of Protected Poles: 1
• Rated Current (In): 3 A
• Trip Unit Technology: Thermal-magnetic
• Trip Curve: C Curve
• Network Type: AC
• Network Frequency: 50/60 Hz
• Rated Operational Voltage (Ue): 220–240 V AC
• Magnetic Tripping Limit: 8 × In ±20%
• Breaking Capacity:
  • 4.5 kA (Icn) at 230 V AC (IEC/EN 60898-1)
  • 6 kA (Icu) at 220–240 V AC (IEC/EN 60947-2)
• Rated Service Breaking Capacity (Ics): 6 kA (100% of Icu)
• Rated Insulation Voltage (Ui): 500 V AC
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Utilisation Category: Category A
• Suitability for Isolation: Yes
• Contact Position Indicator: Yes
• Control Type: Toggle
• Local Signalling: Trip indicator
• Mounting Method: Clip-on
• Mounting Support: 35 mm DIN rail
• Removable Comb Busbar: Installed
• Connection Pitch: 18 mm
• Module Width: 2 × 9 mm pitches
• Width: 18 mm
• Terminal Type: Single terminal (top or bottom)
• Compatible Conductor Sizes:
  • 1–25 mm² rigid copper
  • 1–16 mm² flexible copper
  • 1–16 mm² flexible copper with ferrule
  • Flexible copper or aluminium with ring terminal and accessory
• Wire Stripping Length: 14 mm
• Tightening Torque: 2 N·m
• Earth-Leakage Protection: Without
• Ingress Protection (IP Rating): IP20 (IEC 60529)
• Ingress Protection in Modular Enclosure: IP40 (Class II enclosure)
• Pollution Degree: 3
• Maximum Relative Humidity: 95%
• Operating Altitude: 0–2000 m
• Operating Temperature: -35°C to +70°C
• Storage Temperature: -40°C to +85°C

Documents

• Datasheet

For full specifications, view the official Schneider Electric documentation.
