CBI CQA2110 QA(13) Series Mini Rail 10A 1P 3kA Circuit Breaker
R248,78
- Description
Description

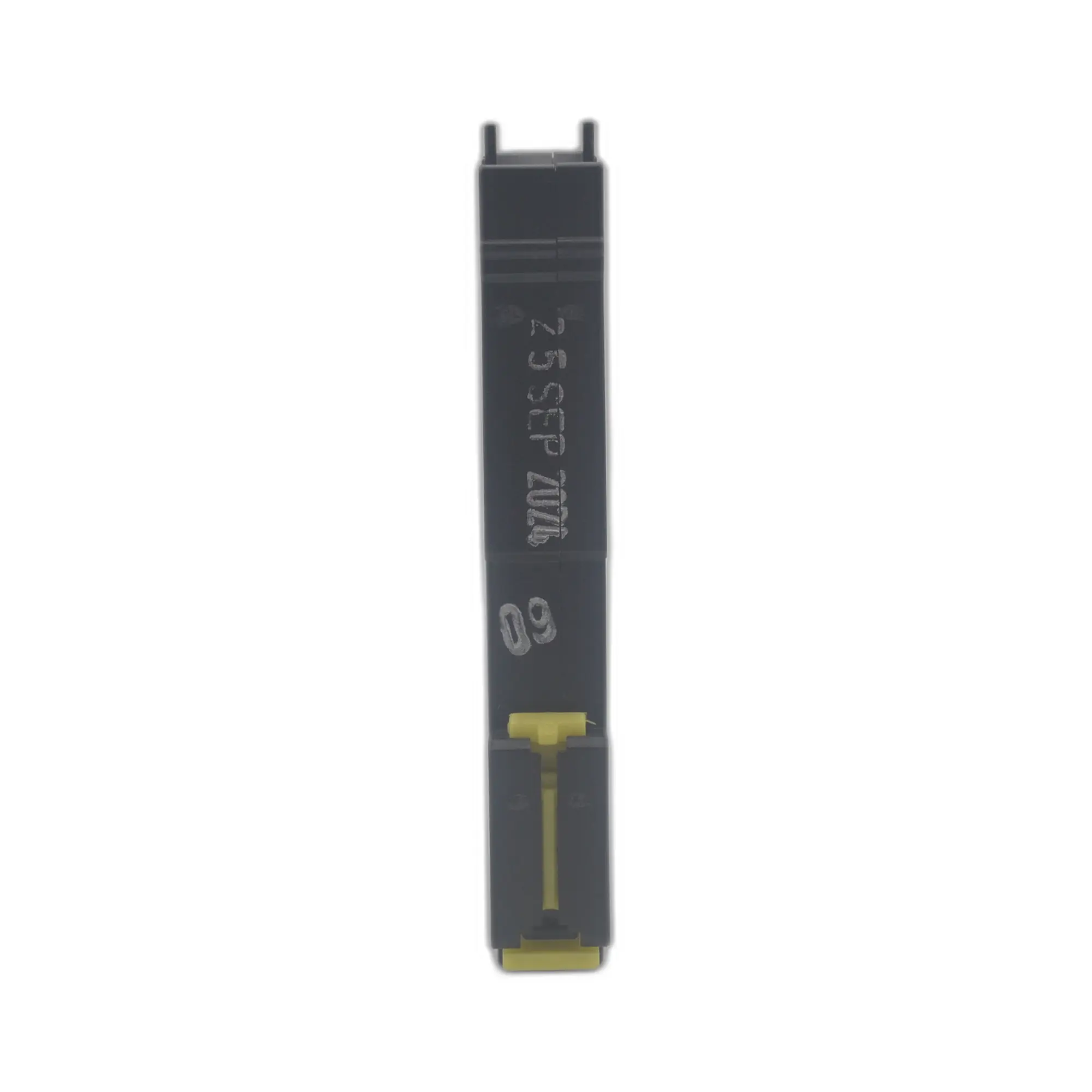

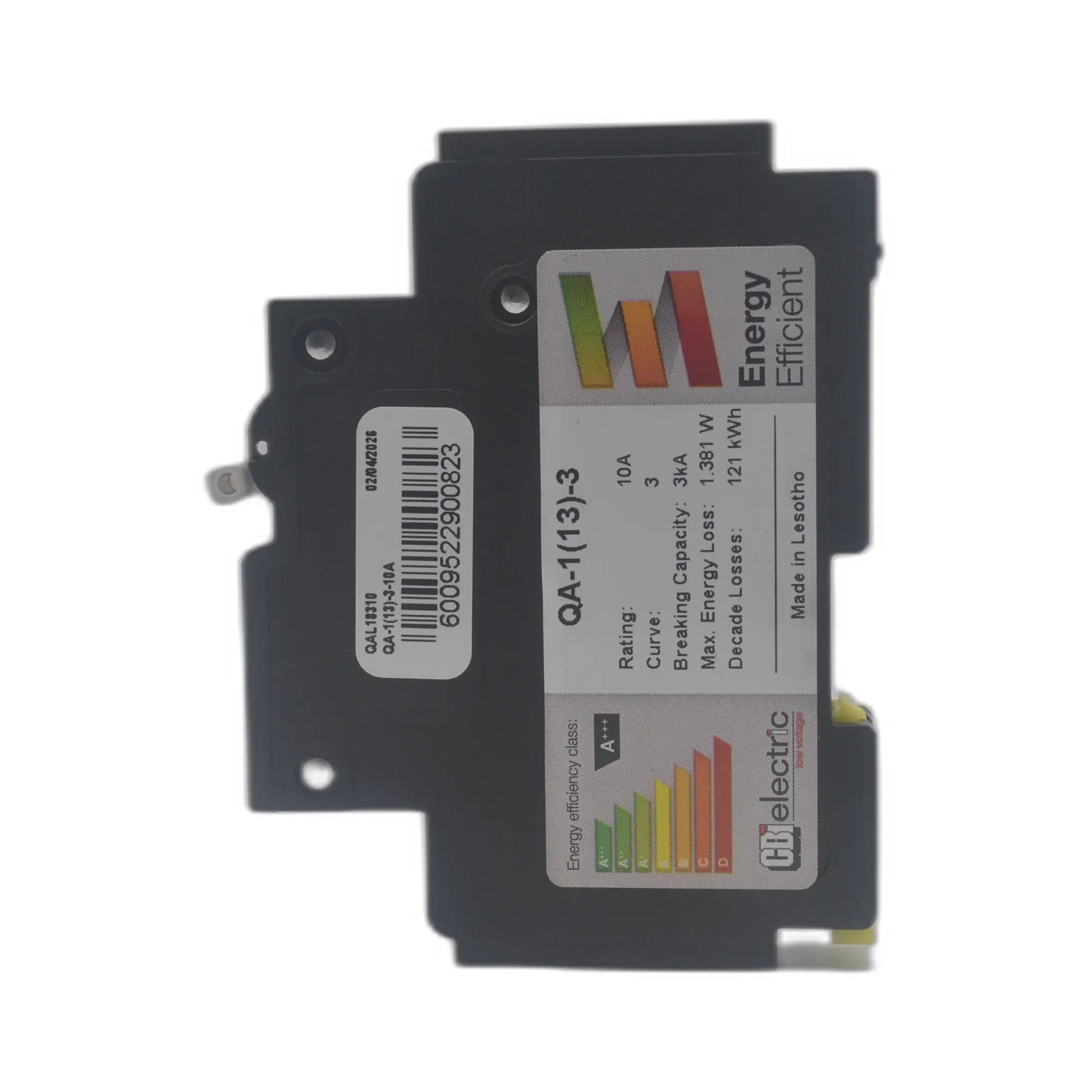

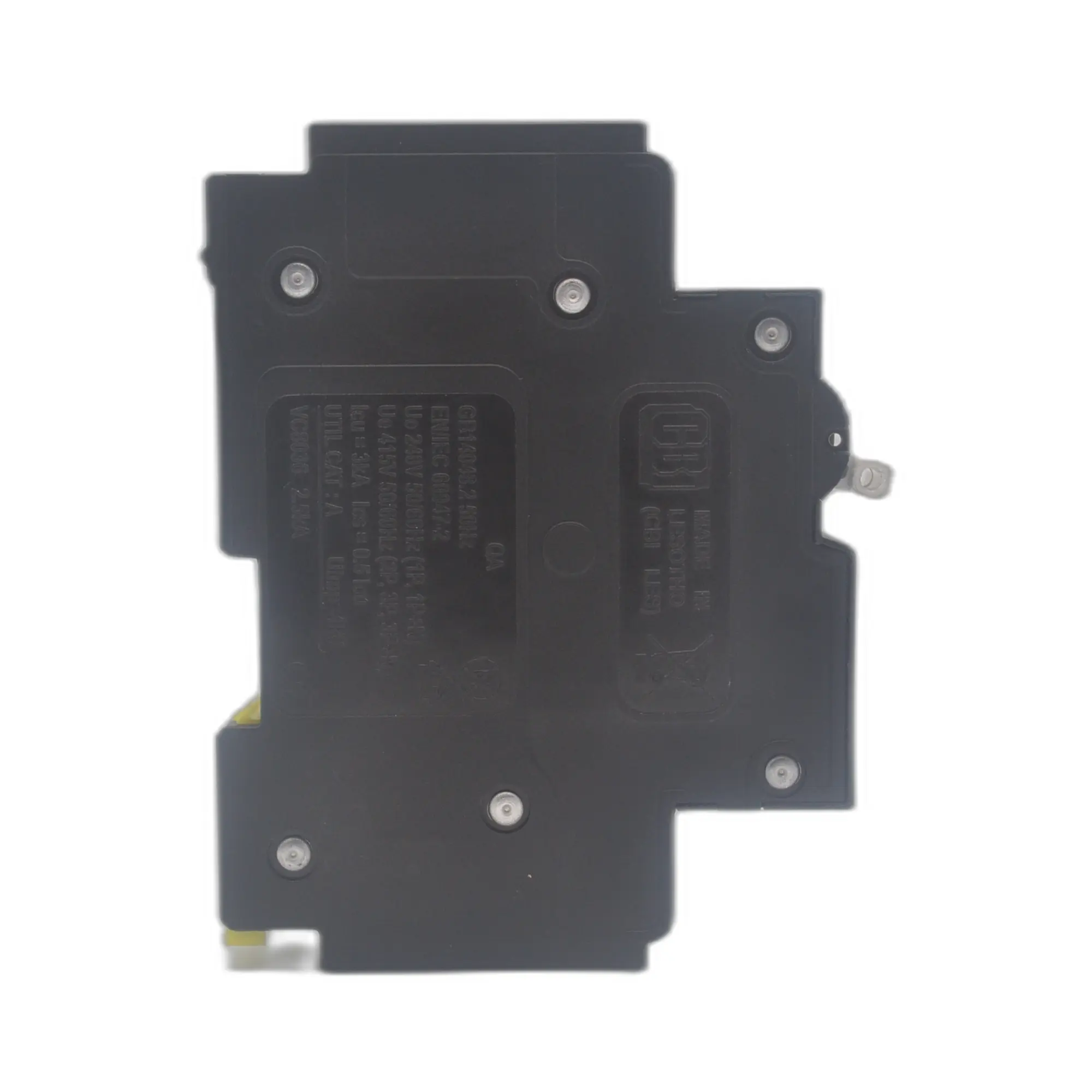

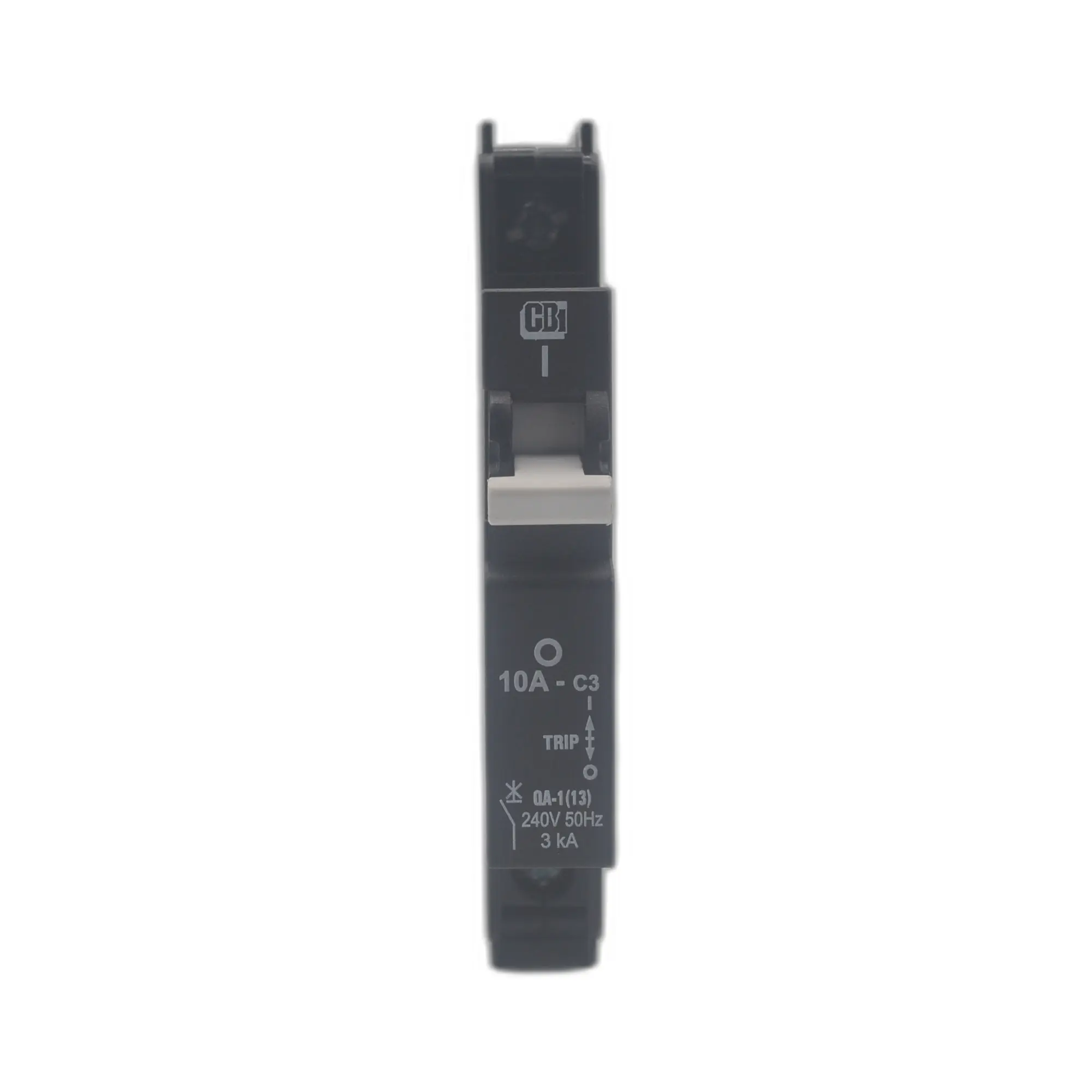

CBI CQA2110 QA(13) Series Mini Rail 10A 1P 3kA Circuit Breaker
Compact, hydraulic-magnetic miniature circuit breaker for reliable AC branch protection on mini rail systems.
Need compact, temperature-stable circuit protection for mini rail boards?
The CBI QA(13) Series delivers precise, dependable protection in a ultra-compact 13 mm module, with hydraulic-magnetic technology that maintains 100% rating capability independent of ambient temperature.
Key Features
- Type: Miniature AC circuit breaker, 1-pole, mini rail mount
- Rated Current: 10 A
- Operating Voltage: 240 Vac (1-pole)
- Interrupting Capacity: 3 kA
- Tripping/Time Delay: Curve 3 (short time delay)
- Technology: Hydraulic-magnetic; 100% rated independent of ambient temperature
- Module Width: 13 mm (1 module)
- Indication & Reset: Trip indication with mid-trip position; can be switched on immediately after tripping
- Mounting/Escutcheon: Mini rail mount with 57 mm front escutcheon (black)
- Compliance: VC 8036 (SANS 556-1); suitable for electrical isolation
- Terminal Capacity: 0.75–35 mm²; tightening torque 2.5 Nm (Pozidriv #2 combi head)
- Endurance: 10,000 operations (1,500 electrical at rated current and voltage) per IEC 60947-2
- Operating Temperature Range: -40 °C to +85 °C
Applications
- AC branch circuit protection
- Switch disconnector (SANS 60947-3)
- Lighting control
- Telecom/datacom and UPS equipment
- Alternative energy and mobile power generation equipment
- Railway signalling
- Residential and industrial equipment
Optional Accessories
- Handle lock: QFAP001
- Surface mounting clips: SAAX000
- Busbar: SABBM54
- 57 mm escutcheon blank: 2305608
- 57 mm safety blank: SAEB000
