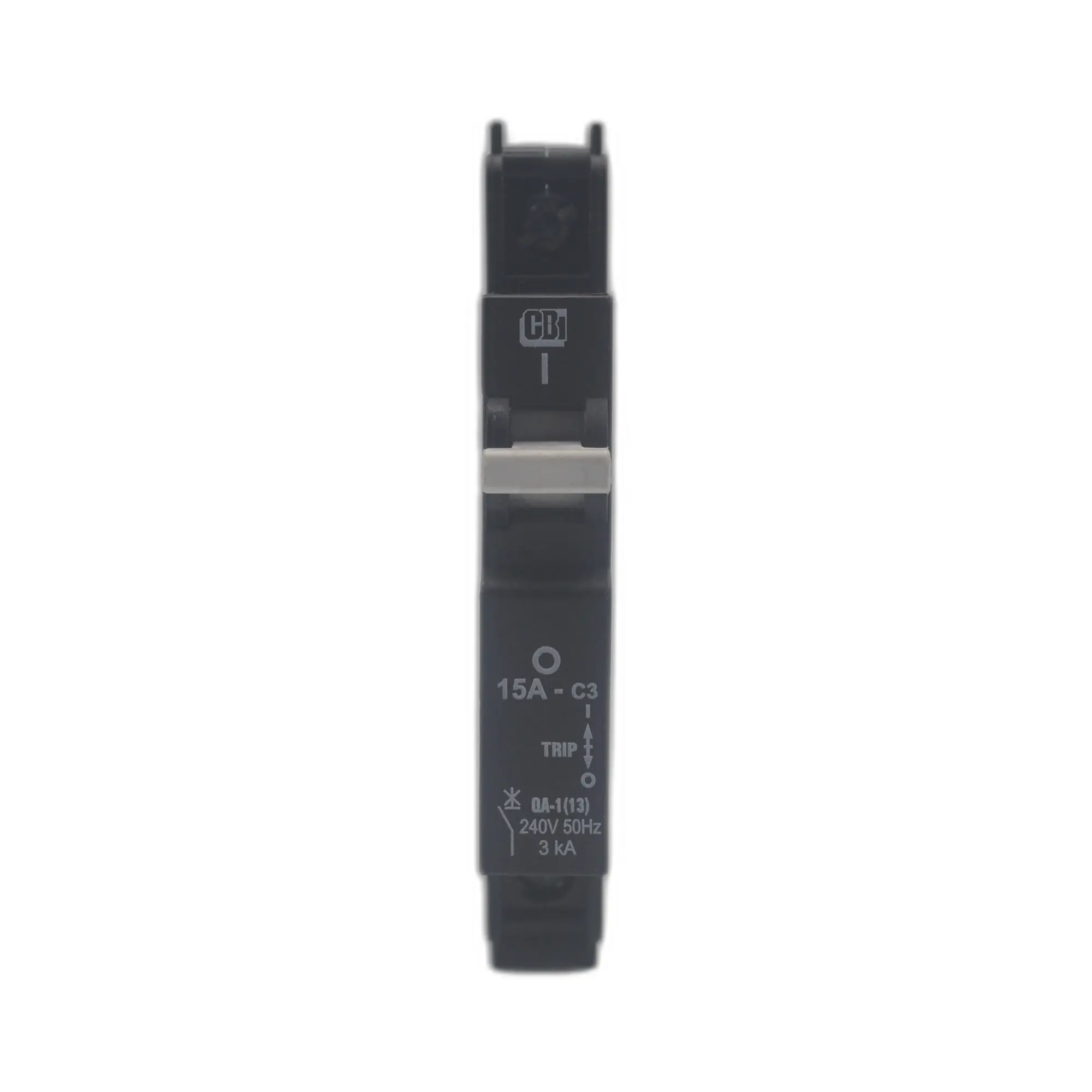

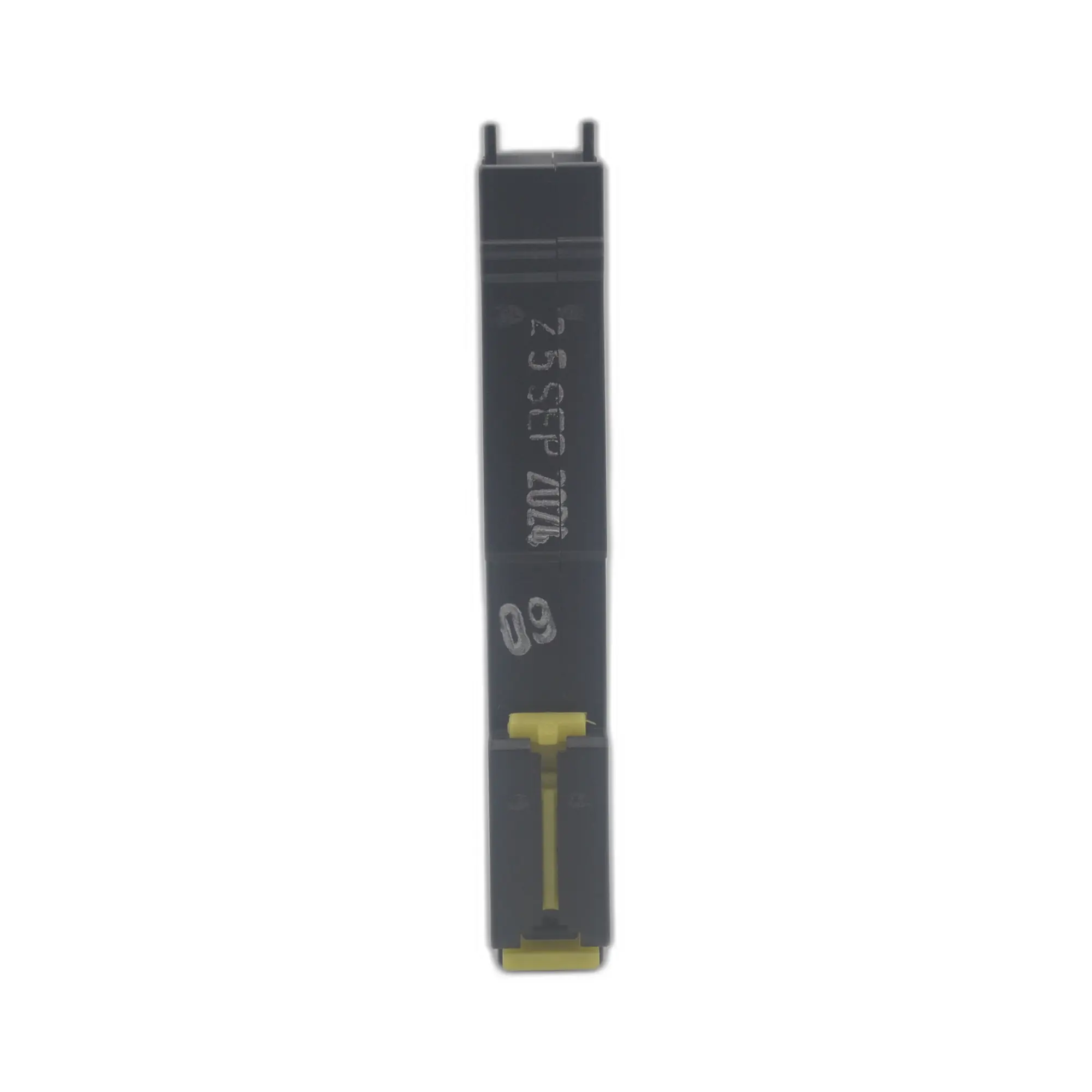

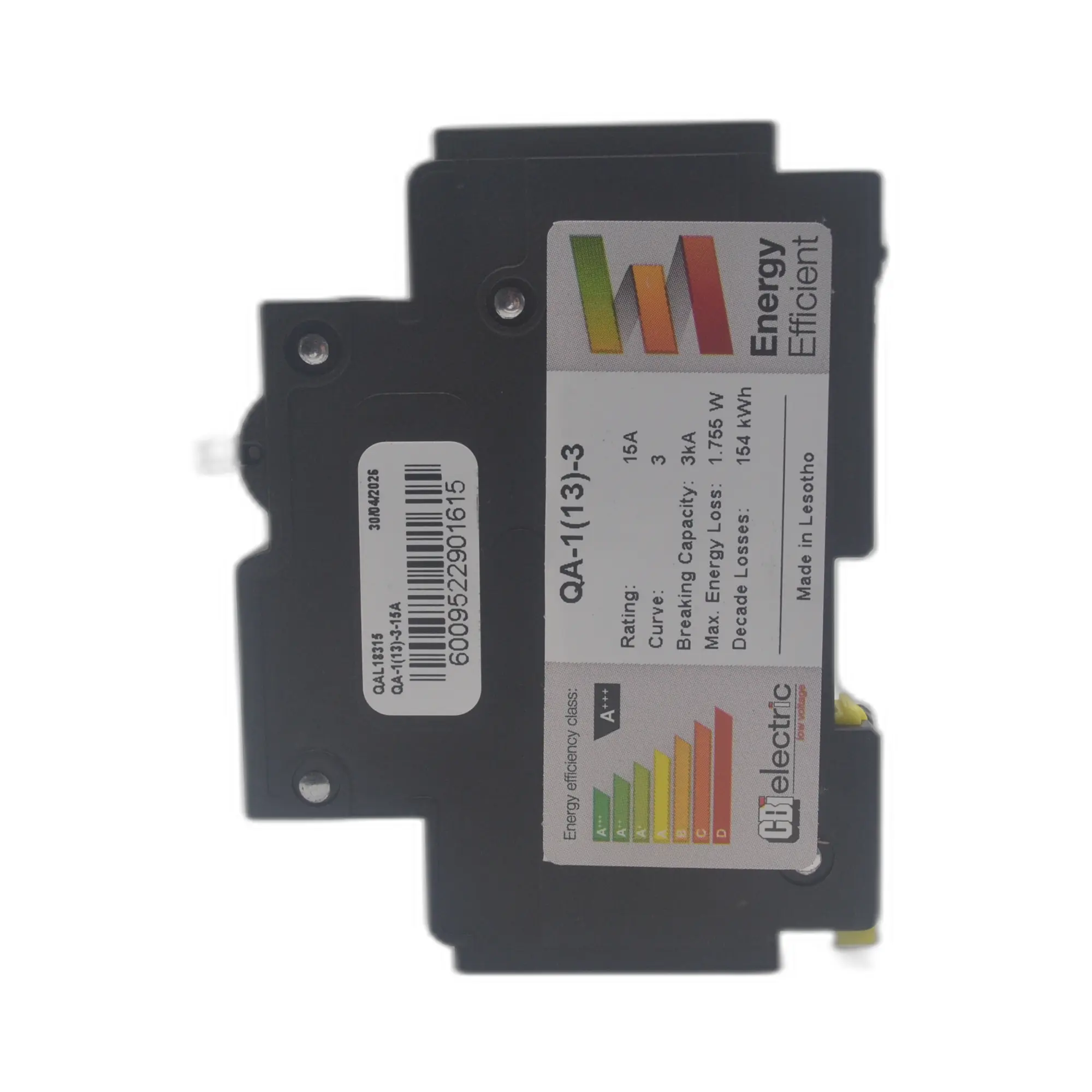

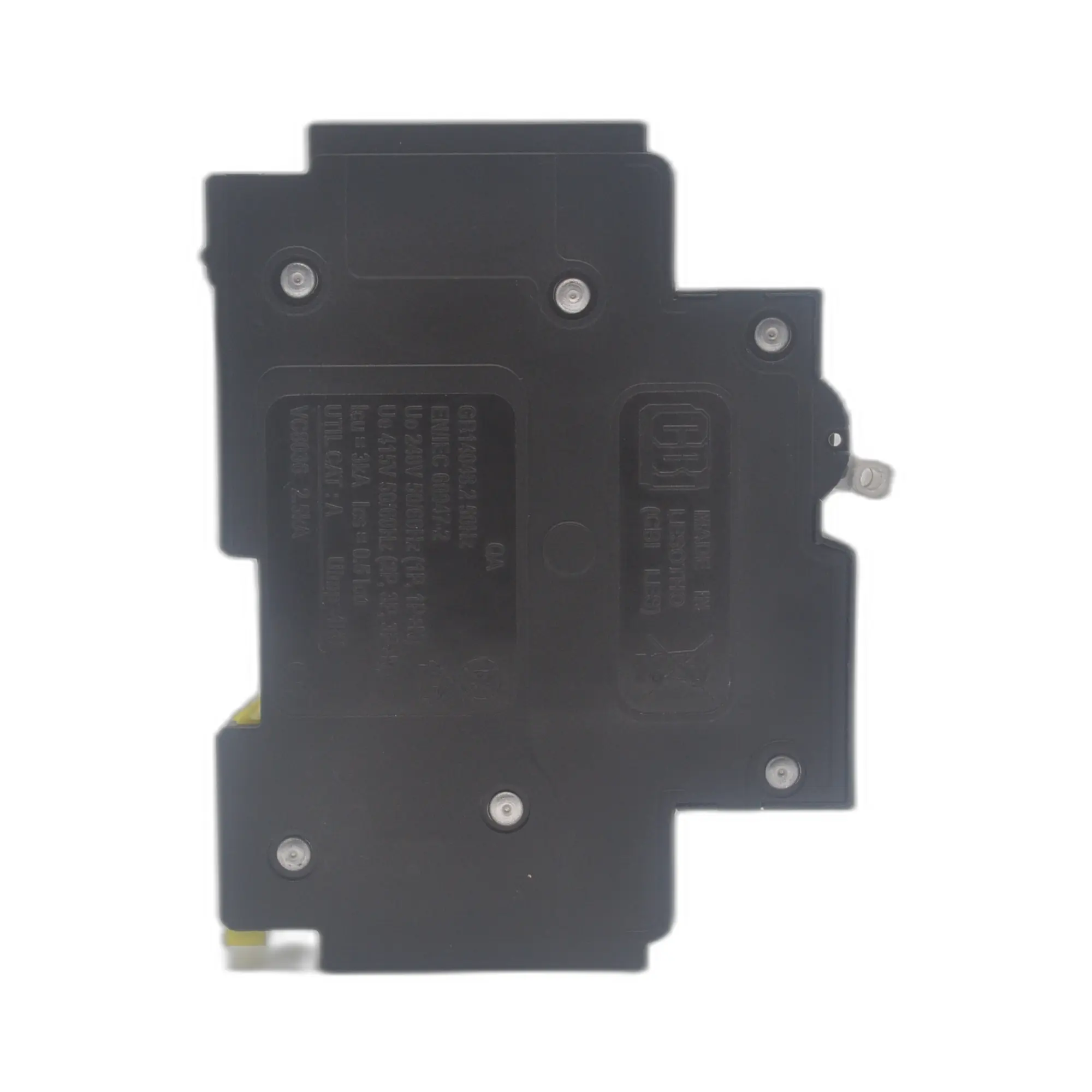

CBI CQA2115 QA-1(13) 15A 1‑Pole 3 kA Hydraulic‑Magnetic Mini Rail Circuit Breaker
R248,78
- Description
Description
CBI CQA2115 QA-1(13) 15A 1‑Pole 3 kA Hydraulic‑Magnetic Mini Rail Circuit Breaker
Product Status: Brand new
Compact, reliable protection for AC branch circuits
Get dependable 15 A protection in tight panels. This QA(13) miniature AC circuit breaker uses hydraulic‑magnetic technology with 100% rating capability independent of ambient temperature, delivering consistent trip performance and mid‑trip indication in a slim 13 mm module.
Key Features
- Series: QA(13) hydraulic‑magnetic miniature circuit breaker
- Poles: 1 (mini rail mount)
- Current rating: 15 A
- Operating voltage (1‑pole): 240 Vac
- Short‑circuit rating: 3 kA (Curve 3, standard)
- Time delay curve: 3 (white handle), instantaneous trip 3–5 × In
- 100% rating capability, independent of ambient temperature
- Ultra‑compact 13 mm wide module; 57 mm front escutcheon (black)
- Trip indication with mid‑trip position; can be switched on immediately after tripping
- Suitable for electrical isolation
- Shell designed for easier installation onto busbar
- Compliance: VC 8036 (SANS 556‑1)
- Operating temperature range: −40 °C to +85 °C
- Endurance: 10,000 operations (1,500 electrical at rated current and voltage)
- Connection: 0.75–35 mm² conductors, 2.5 Nm terminal torque (Pozidriv #2 combi head)
Typical Applications
- AC branch circuit protection and switch disconnector (SANS 60947‑3)
- Telecom/datacom and UPS equipment
- Lighting control
- Alternative energy and mobile power generation equipment
- Railway signalling
- Residential and industrial equipment
Optional Accessories
- Handle lock: QFAP001
- Surface mounting clips: SAAX000
- Busbar: SABBM54
- 57 mm escutcheon blank: 2305608
- 57 mm safety blank: SAEB000
