Siemens 6ES7 138 4CA01 0AA0 ET200S Power Module PM-E 24V DC (Pre-Owned)

Description

Siemens 6ES7 138 4CA01 0AA0 ET200S Power Module PM-E 24V DC (Pre-Owned)

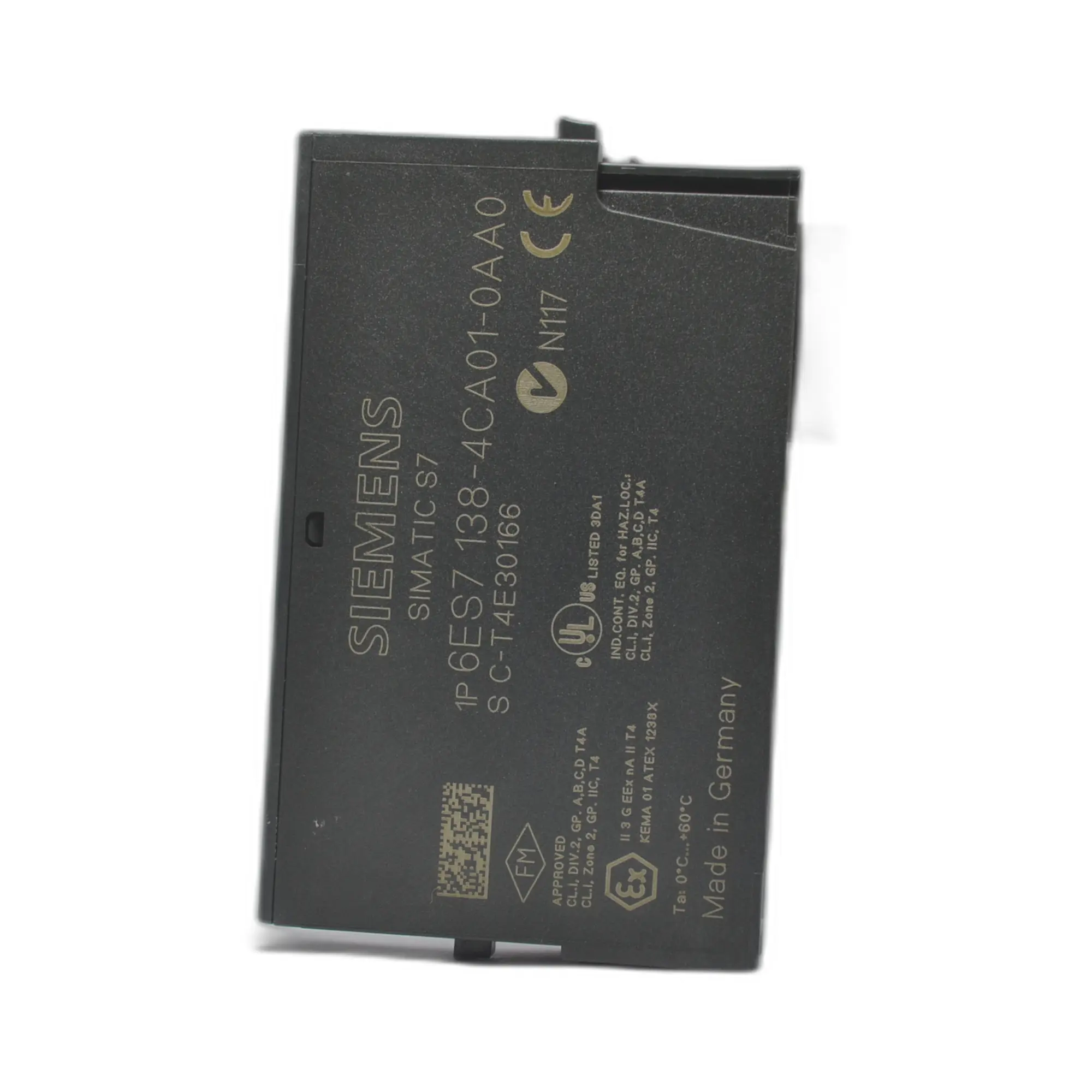

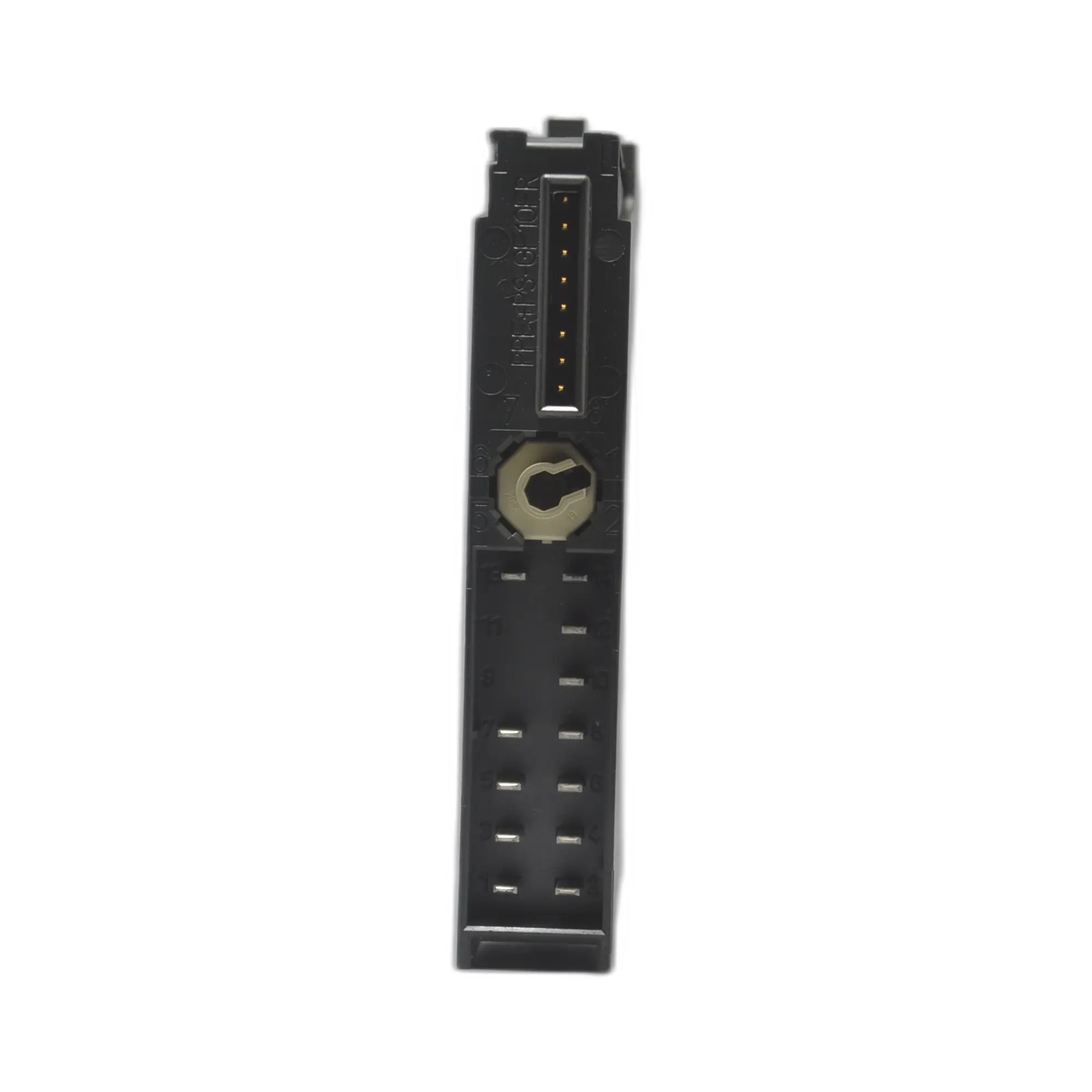

A pre-owned Siemens 6ES7 138 4CA01 0AA0 ET200S Power Module PM-E 24V DC

Pulled from a panel, tested and working according to specification.

In excellent condition.

Features:

• Application: Power module for ET 200S distributed I/O systems
• Supply Voltage: 24 V DC
• Input Current (No Load): Max. 4 mA
• Current Carrying Capacity: 10 A (up to 60°C)
• Power Loss: Typical 0.1 W
• Short-Circuit Protection: External protection required (C-curve circuit breaker)
• Reverse Polarity Protection: Yes
• Diagnostics: Missing load voltage detection
• Diagnostic LEDs:
  • PWR (Green): Load voltage status
  • SF (Red): Group fault indication
• Configurable Parameter: Missing load voltage diagnostics (Enable/Disable)
• Electrical Isolation: Yes (between load voltage and backplane bus)
• Isolation Test Voltage: 500 V DC
• Mounting Compatibility: Siemens ET 200S distributed I/O system
• Dimensions (W × H × D): 15 × 81 × 52 mm
• Approvals: FM, CCC-Ex, NK (Nippon Kaiji Kyokai), CCS (China Classification Society)
• RoHS Compliance: China RoHS
• Product Status: Spare part / Discontinued by Siemens (since October 2023)

Documents

• Datasheet

For full specifications, view the official Siemens documentation.
