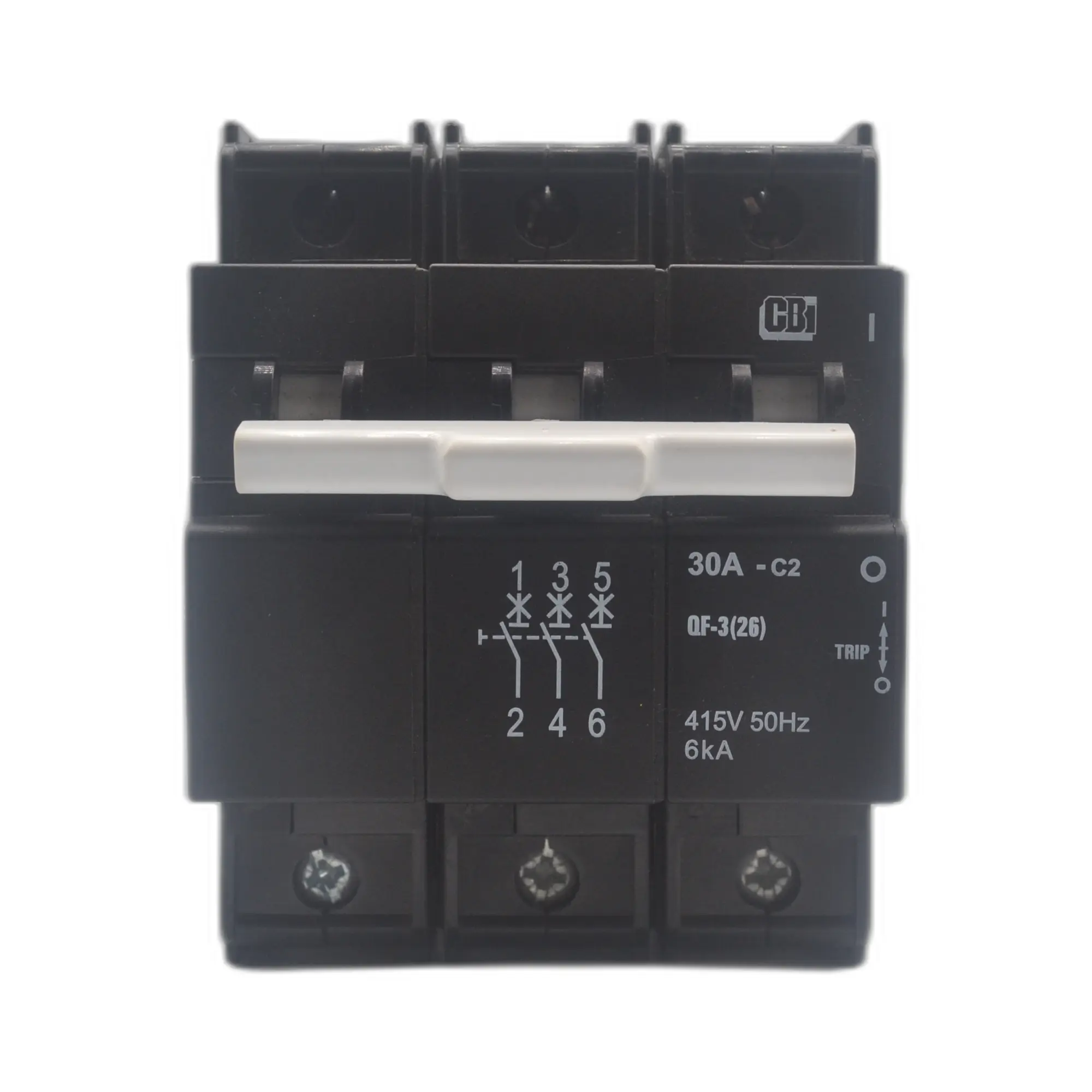

CBI CQF6330 QF-3(26) 30A 3-Pole 6 kA Circuit Breaker (Dual Mount) - Image 1
CBI CQF6330 QF-3(26) 30A 3-Pole 6 kA Circuit Breaker (Dual Mount) - Image 2

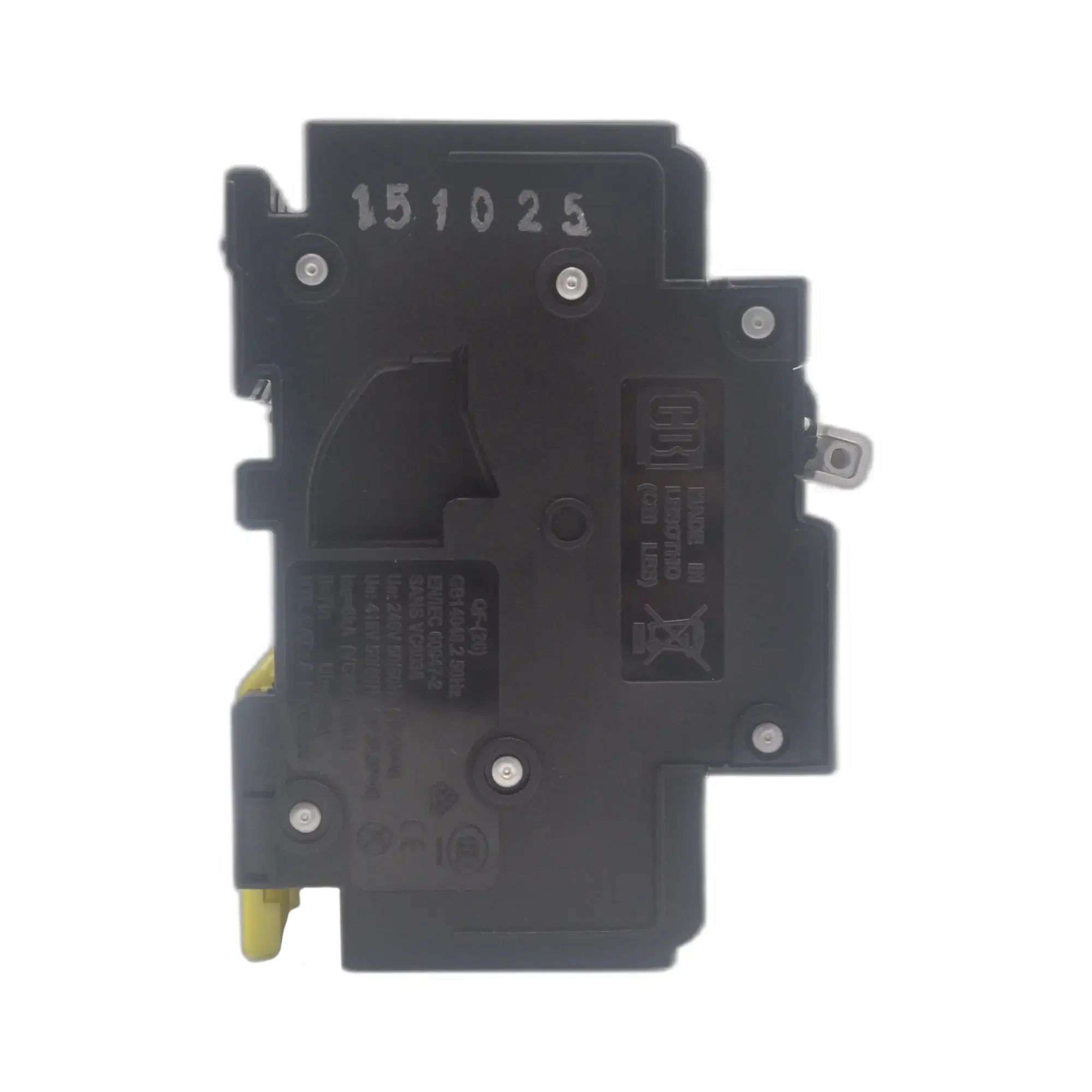

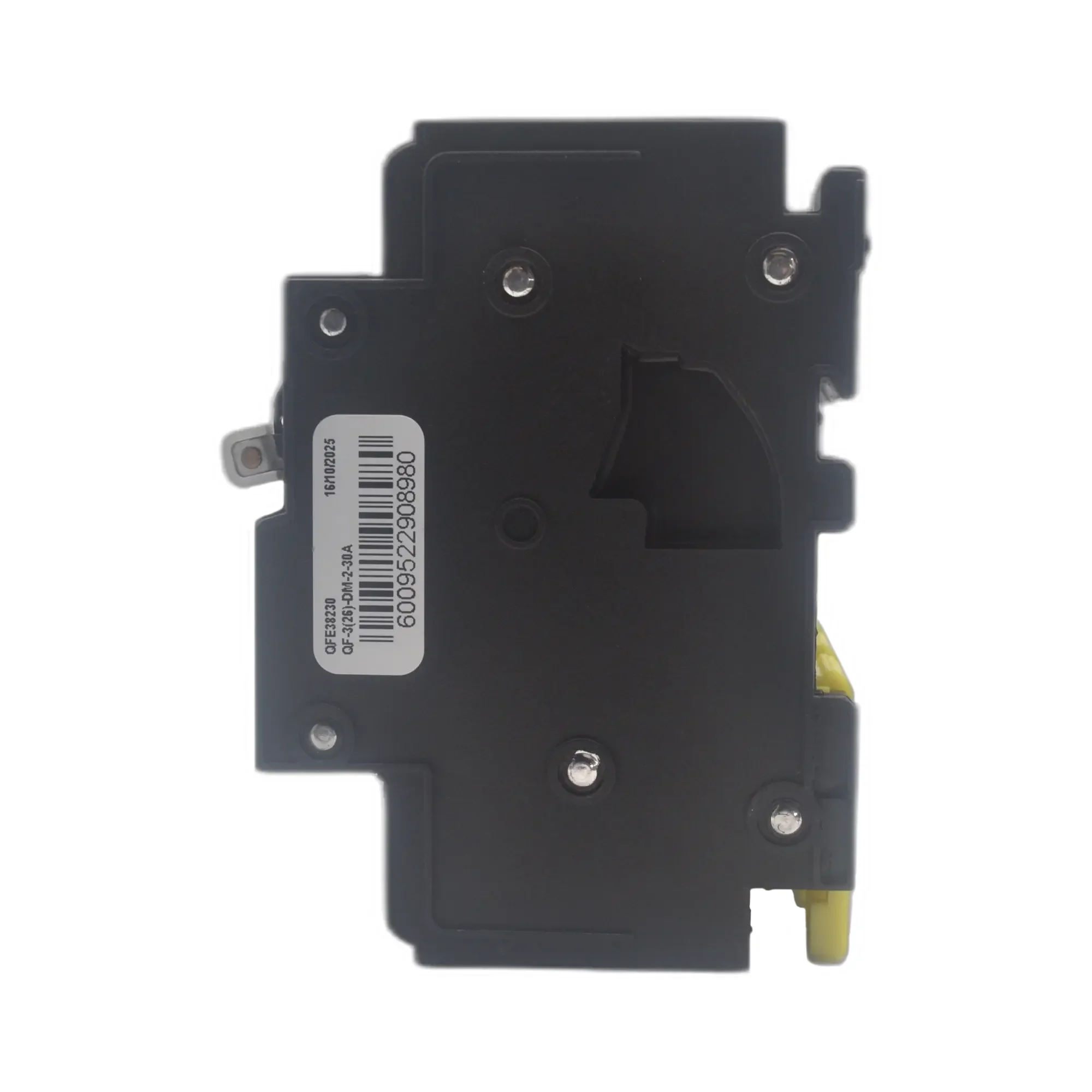

CBI CQF6330 QF-3(26) 30A 3-Pole 6 kA Circuit Breaker (Dual Mount) - Image 3

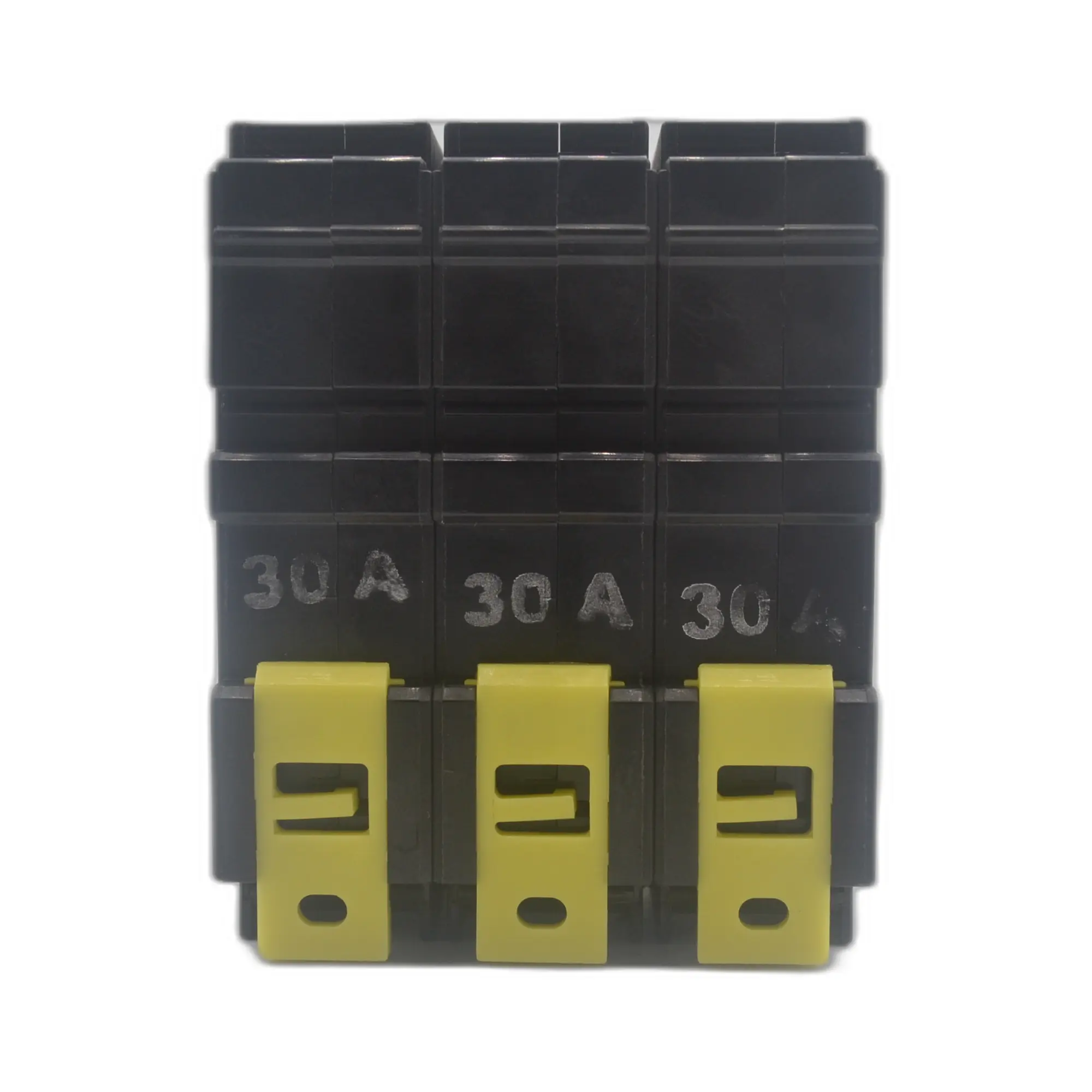

CBI CQF6330 QF-3(26) 30A 3-Pole 6 kA Circuit Breaker (Dual Mount) - Image 4
CBI CQF6330 QF-3(26) 30A 3-Pole 6 kA Circuit Breaker (Dual Mount) - Image 5

CBI CQF6330 QF-3(26) 30A 3-Pole 6 kA Circuit Breaker (Dual Mount)

CBI CQF6325 QF-3(26) 25A 3‑Pole 6 kA Circuit Breaker
CBI CQF6330O QF-3(26) 30A 3-Pole 6 kA Miniature Circuit Breaker (Orange Handle)

R1488,48

Category:
CBI

Description

CBI CQF6330 QF-3(26) 30A 3-Pole 6 kA Circuit Breaker (Dual Mount)

Reliable 6 kA protection for 3-phase circuits

Equip your three-phase applications with dependable overcurrent protection at 415 Vac. This CBI breaker from the QF range delivers standard Curve 2 tripping in a compact form factor and installs easily on both mini rail and DIN rail systems.

Key Features

  • Current Rating: 30 A
  • Poles: 3
  • Breaking Capacity: 6 kA
  • Operating Voltage: 415 Vac
  • Tripping Curve: Curve 2 (Standard)
  • Mounting: Dual mount – Mini rail and DIN rail, 57 mm
  • Technology: Hydraulic-magnetic
  • MCB Width: 39 mm (3 modules)
  • Max cable size: up to 25 mm²
  • Note: Required to be backed up by a suitable Short Circuit Protection Device (SCPD)
