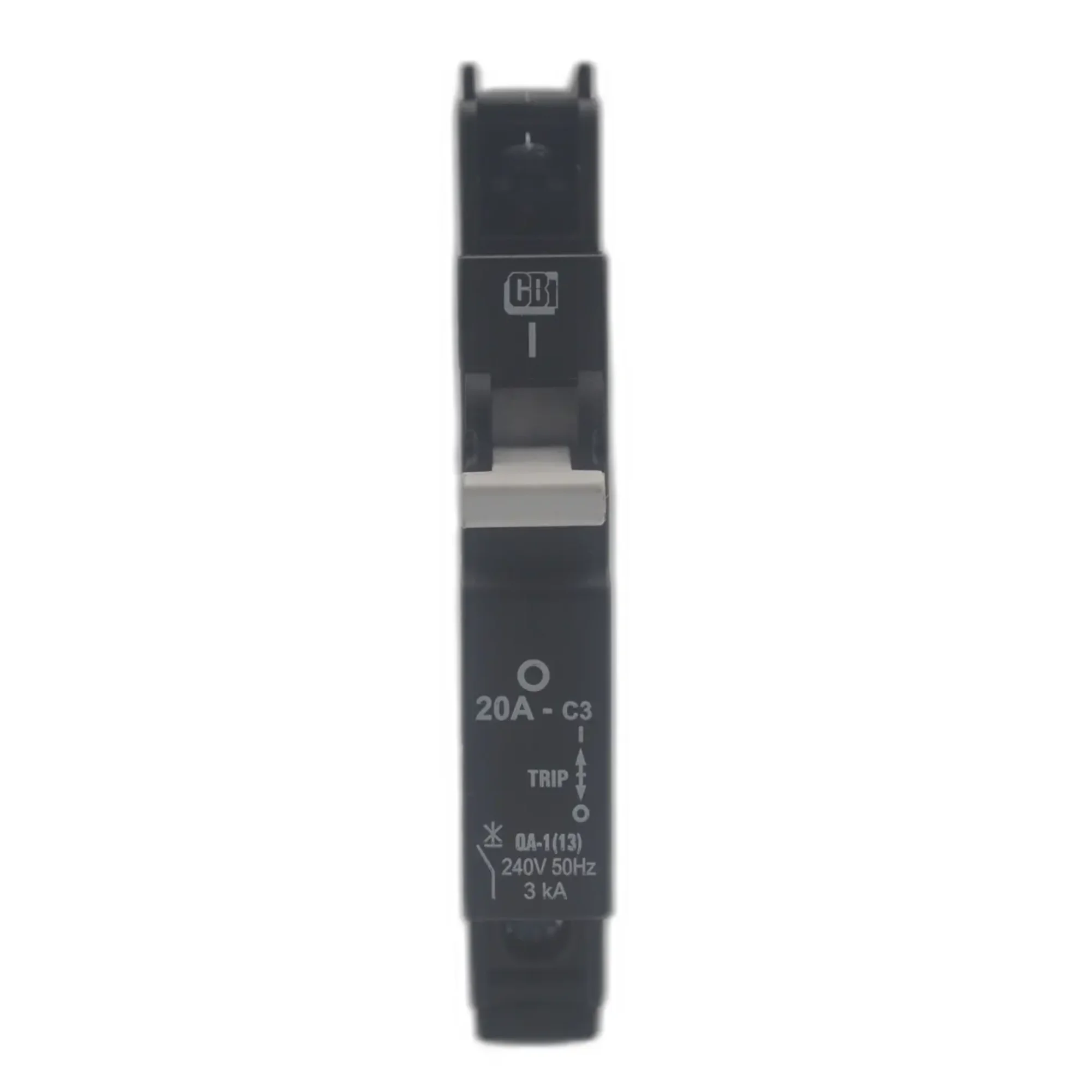

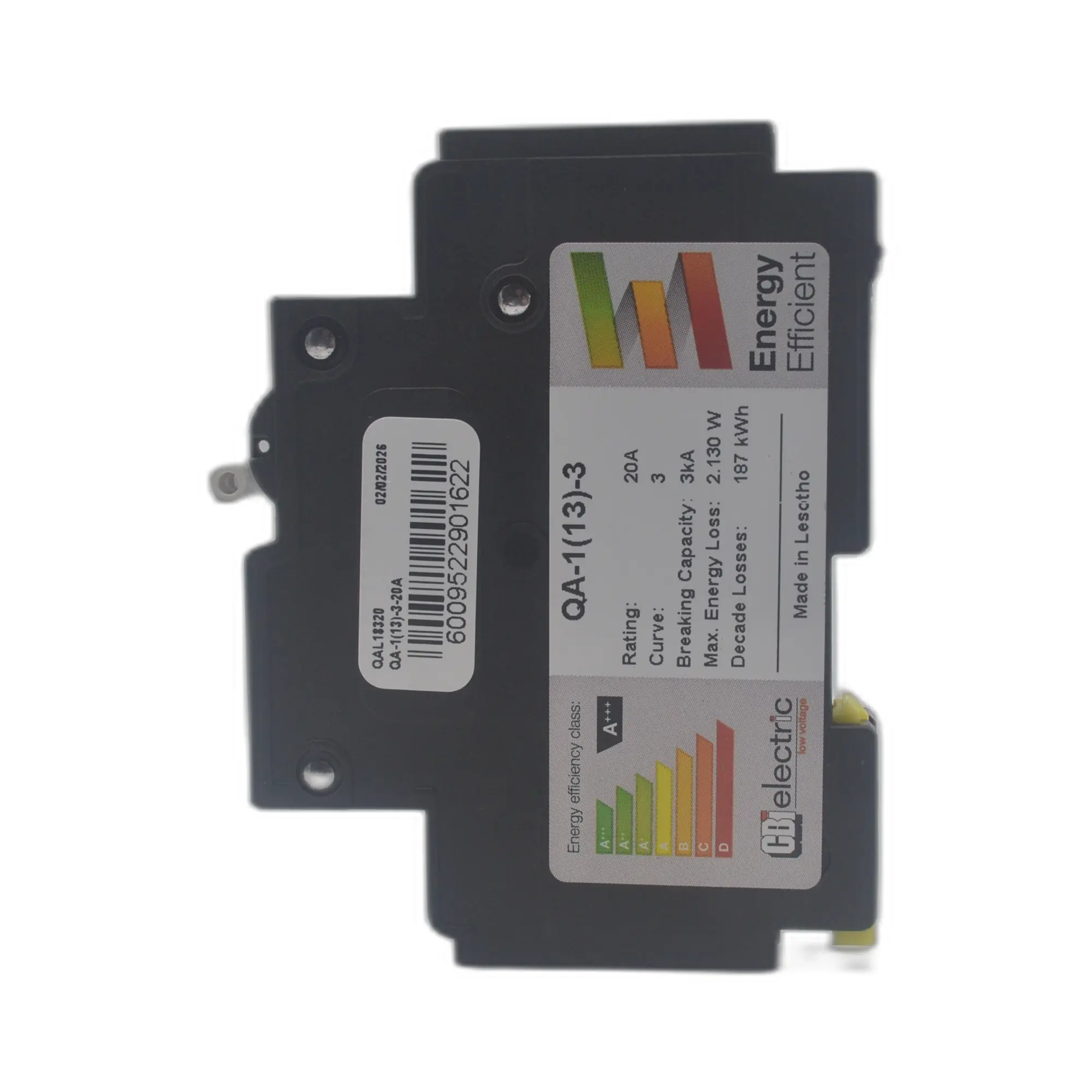

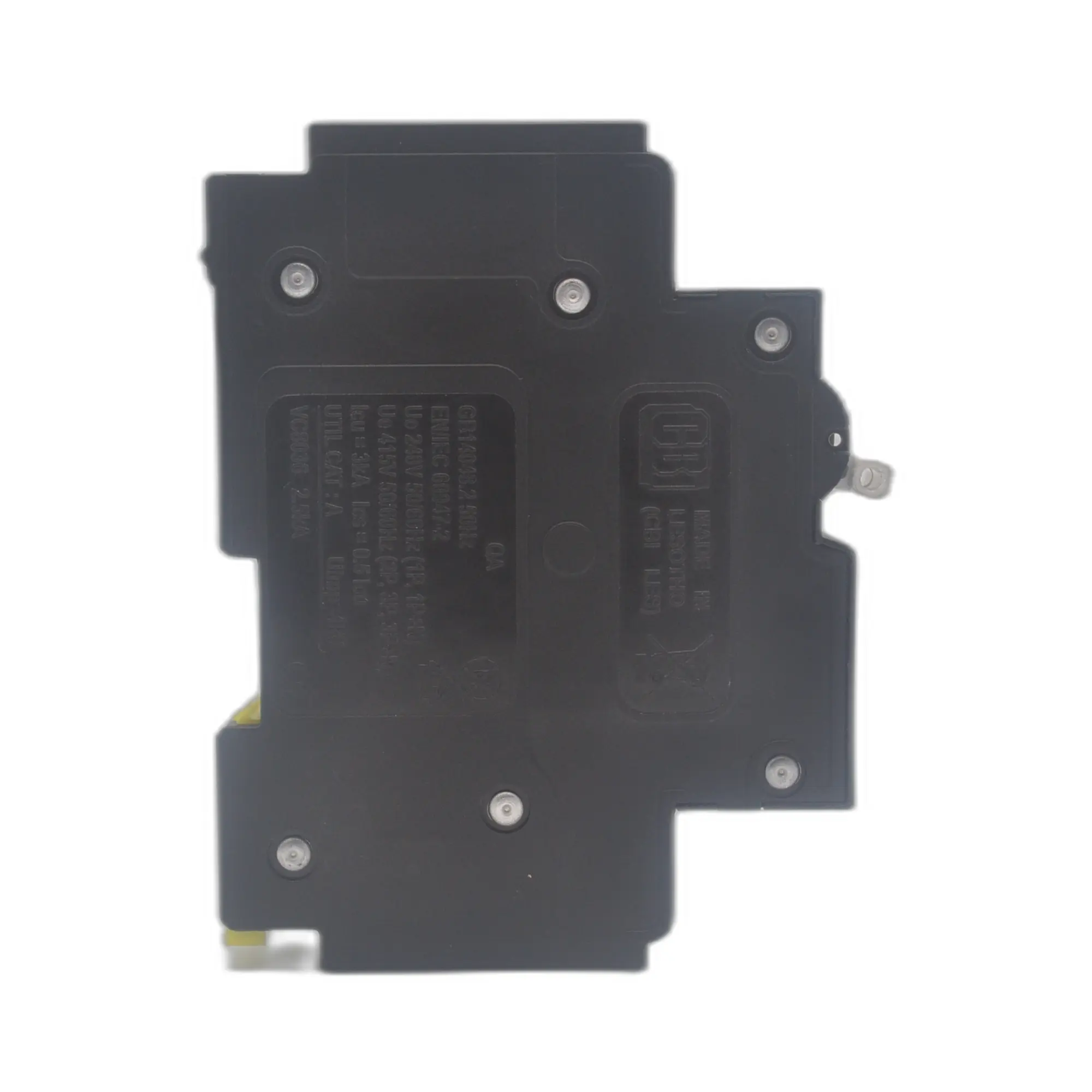

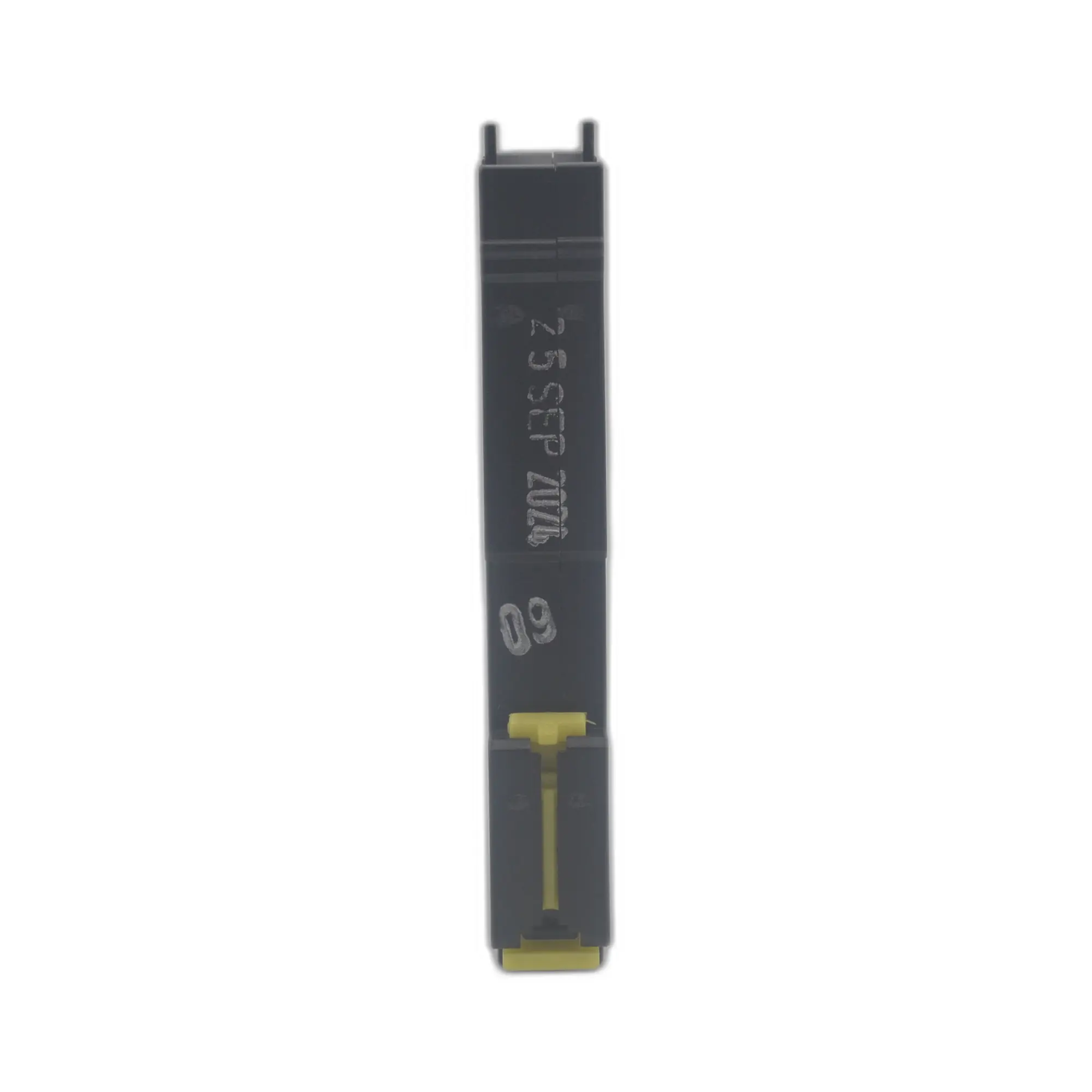

CBI CQA2120 QA(13) 20A 1-Pole 3 kA Mini Rail Hydraulic-Magnetic Circuit Breaker
R248,78
- Description
Description
CBI CQA2120 QA(13) 20A 1-Pole 3 kA Mini Rail Hydraulic-Magnetic Circuit Breaker
Reliable protection in tight panels
This QA(13) Series hydraulic-magnetic AC circuit breaker provides precise, ambient-independent protection for 240 Vac branch circuits in an ultra-compact 13 mm module.
Key Features
- Current rating: 20 A
- Poles: 1 (mini rail mount)
- kA rating: 3 kA; Curve 3 (short time delay)
- Operating voltage: 240 Vac
- Hydraulic-magnetic technology with precision tripping
- 100% rated, independent of ambient temperature
- Ultra-compact 13 mm wide module; 57 mm front escutcheon (black)
- Trip indication with mid-trip position; can be switched on immediately after tripping
- Suitable for electrical isolation
- Approvals: VC 8036 (SANS 556-1)
- Terminal capacity: 0.75–35 mm²; tightening torque: 2.5 Nm (IEC)
- Endurance: 10,000 operations (1,500 electrical at rated conditions)
Typical Applications
- AC branch circuit protection
- Telecom/datacom equipment
- Lighting control
- UPS equipment
- Alternative energy equipment
- Mobile power generation equipment
- Railway signalling equipment
- Residential and industrial equipment
Optional Accessories
- Handle lock: QFAP001
- Surface mounting clips: SAAX000
- Busbar: SABBM54
- 57 mm escutcheon blank: 2305608
- 57 mm safety blank: SAEB000
