CBI CQA2125 QA(13) 25A 1-Pole 3 kA Mini Rail Circuit Breaker
R278,30
- Description
Description

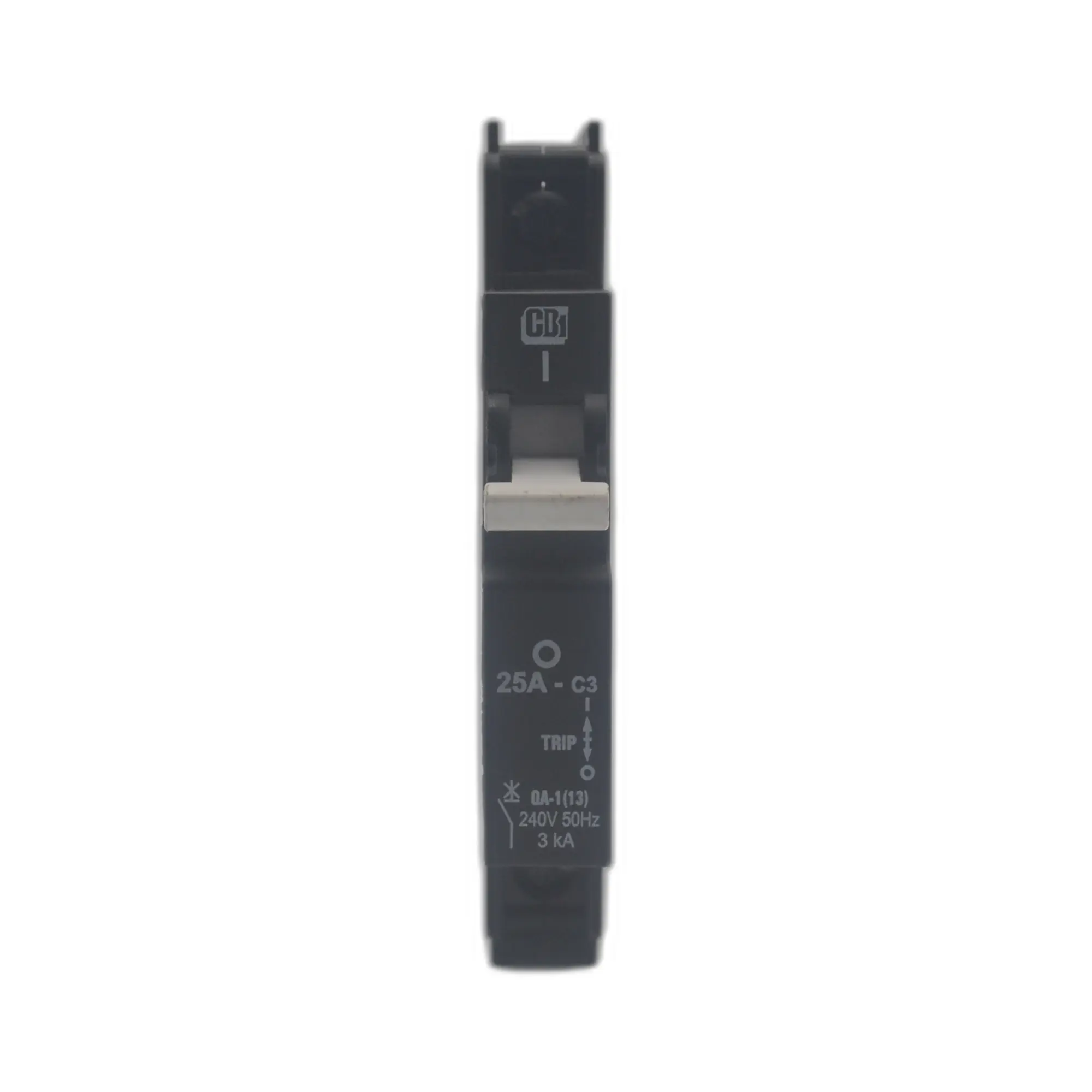

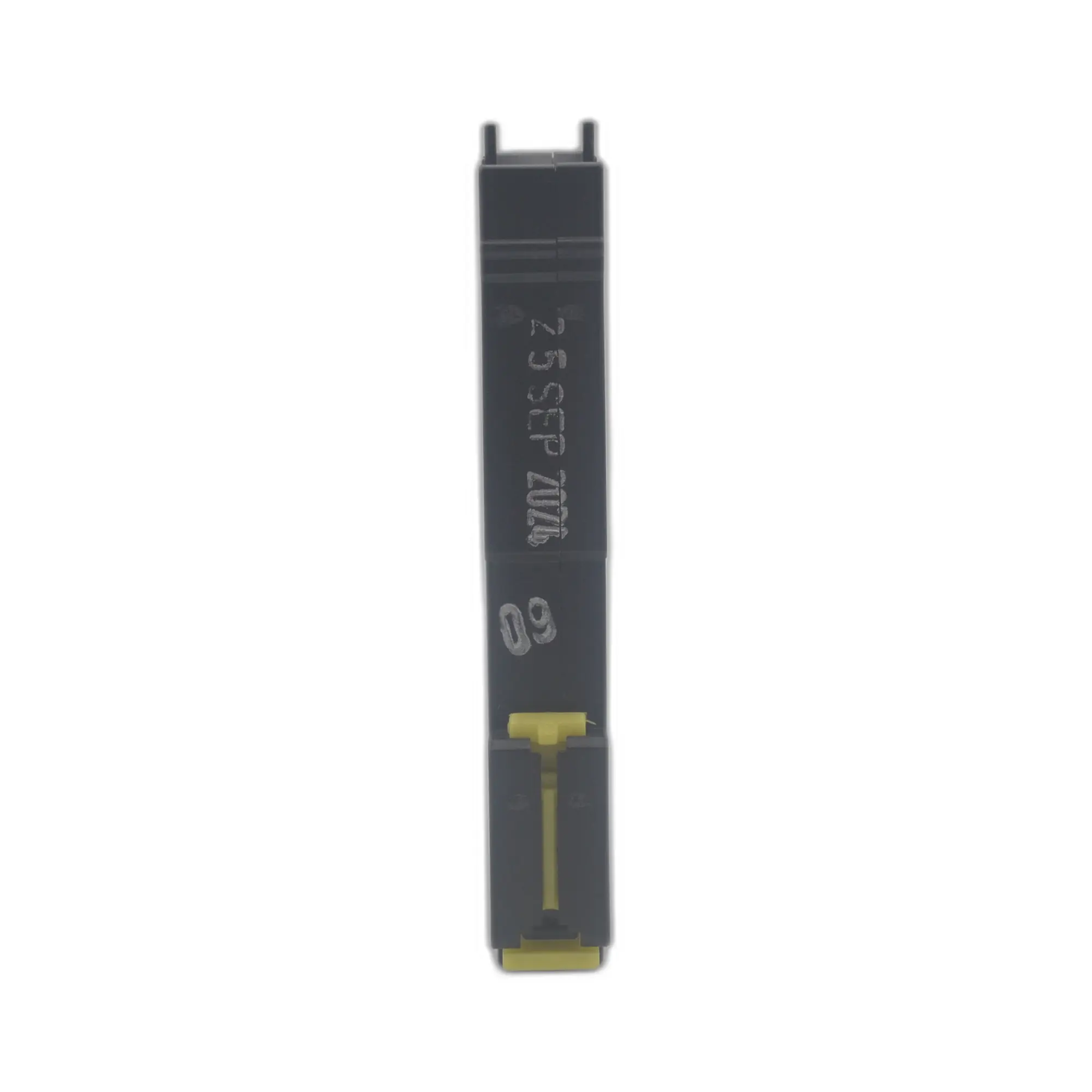

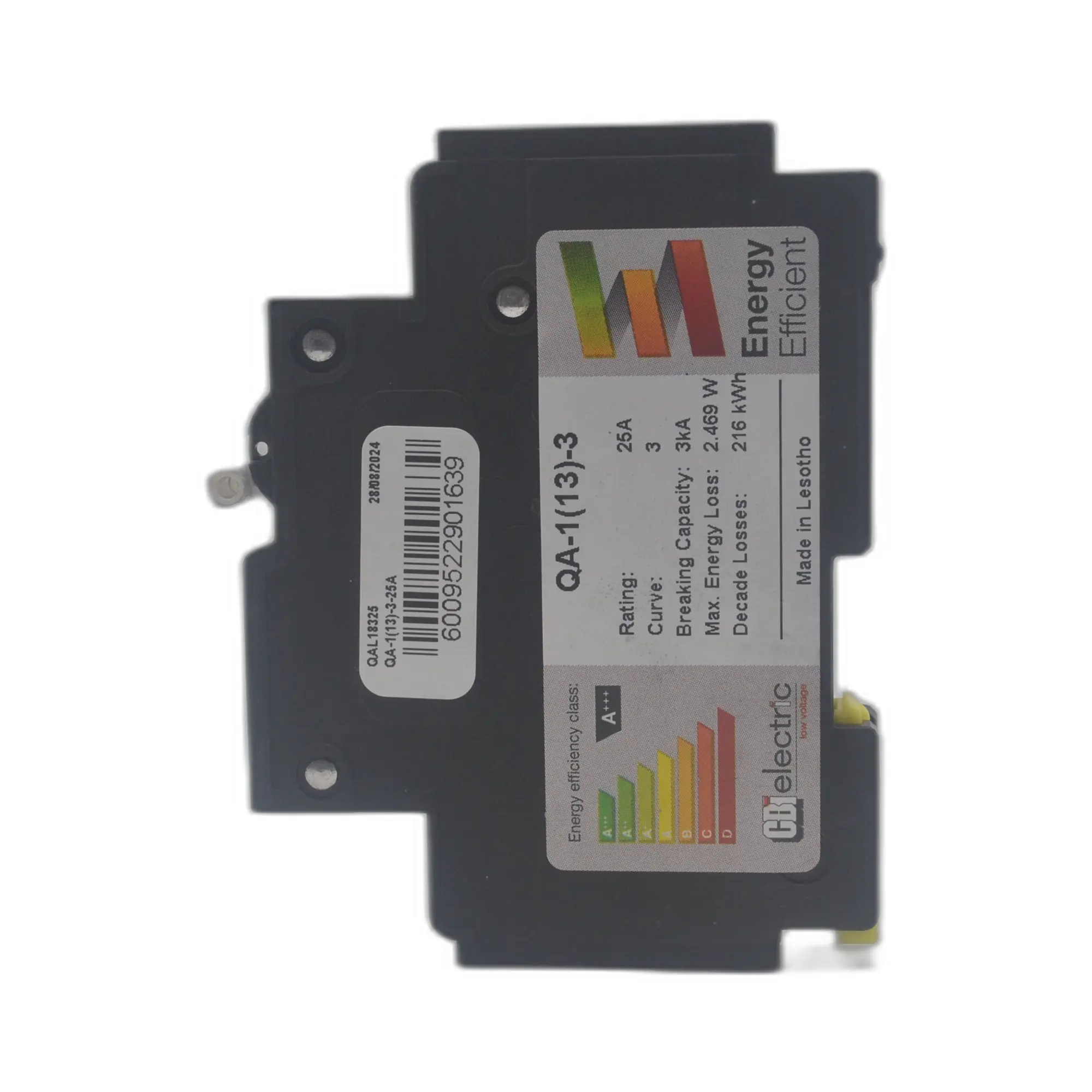

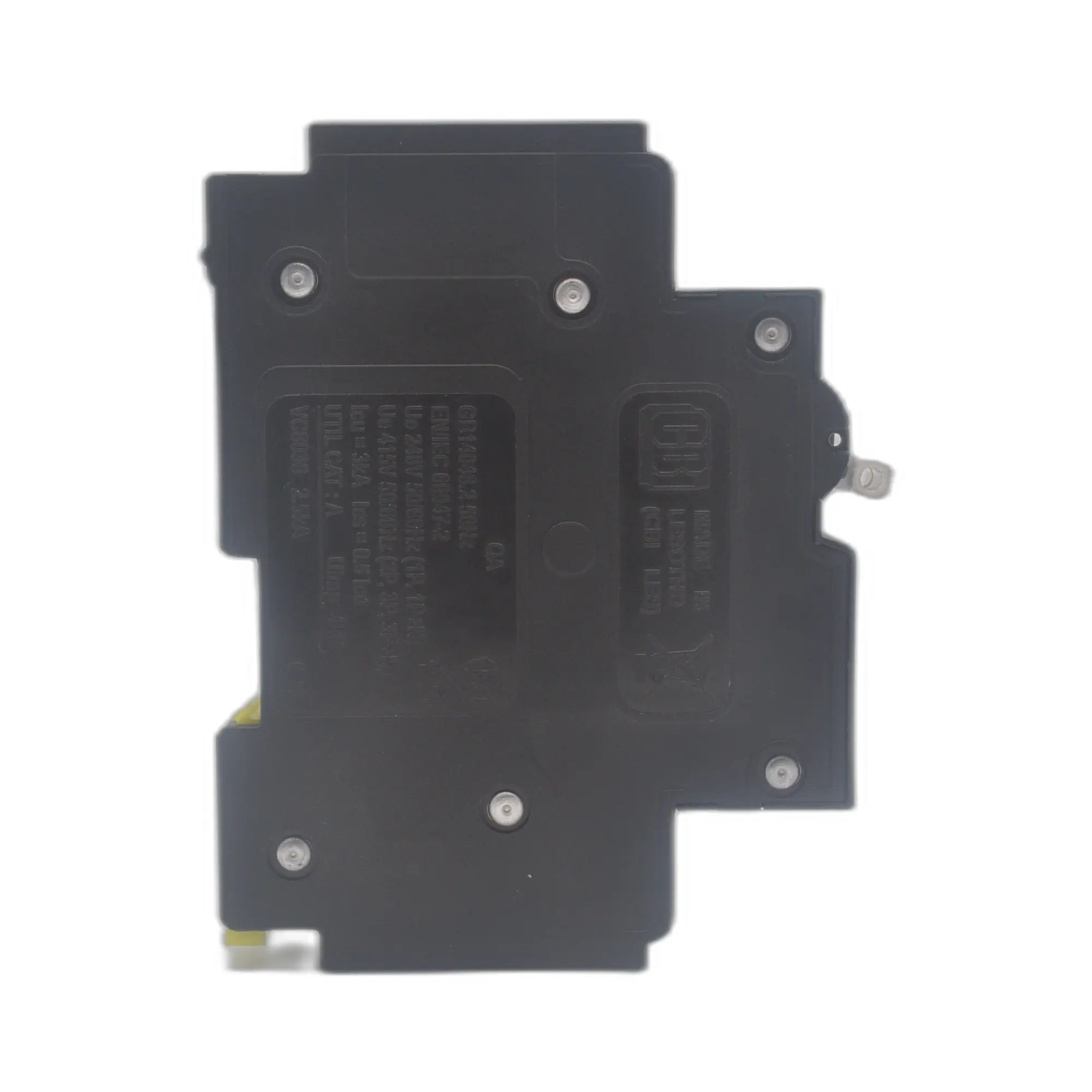

CBI CQA2125 QA(13) 25A 1-Pole 3 kA Mini Rail Circuit Breaker
Compact, consistent protection where panel space is tight
This hydraulic-magnetic miniature circuit breaker delivers precise, ambient temperature–independent protection in a slim 13 mm module, ideal for dense panels and reliable branch circuit protection.
Key Features
- Current rating: 25 A
- Poles: 1-pole
- Voltage: 240 Vac
- Short-circuit rating: 3 kA (Curve 3)
- Hydraulic-magnetic technology with precision tripping
- 100% rating capability, independent of ambient temperature
- Ultra-compact 13 mm wide module
- Trip indication with mid-trip position
- Mini rail mount with 57 mm front escutcheon (black)
- Suitable to use for electrical isolation
- Can be switched on immediately after tripping
- Approvals: VC 8036 (SANS 556-1)
- Time delay: Curve 3 (short time delay; white handle)
- Operating temperature: -40 °C to +85 °C
- Endurance: 10,000 operations (1,500 electrical at rated current and voltage, IEC 60947-2)
- Terminal capacity (IEC): 0.75–35 mm²; torque 2.5 Nm (Pozidriv #2, combi head)
Applications
- AC branch circuit protection
- Telecom/datacom equipment
- Lighting control
- UPS and alternative energy equipment
- Mobile power generation
- Railway signalling
- Residential and industrial equipment
Optional Accessories
- Handle lock: QFAP001
- Surface mounting clips: SAAX000
- Busbar: SABBM54
- 57 mm escutcheon blank: 2305608
- 57 mm safety blank: SAEB000
