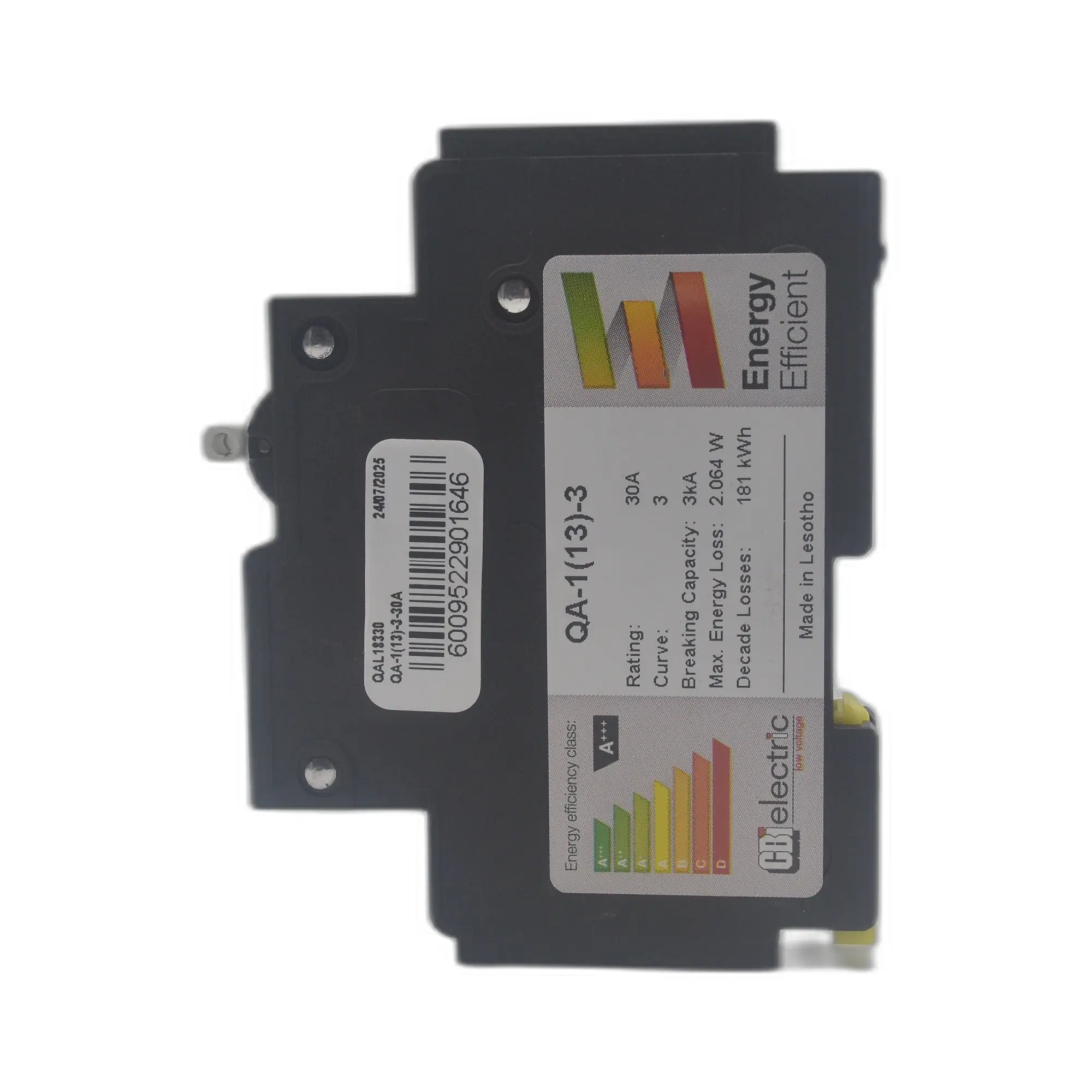

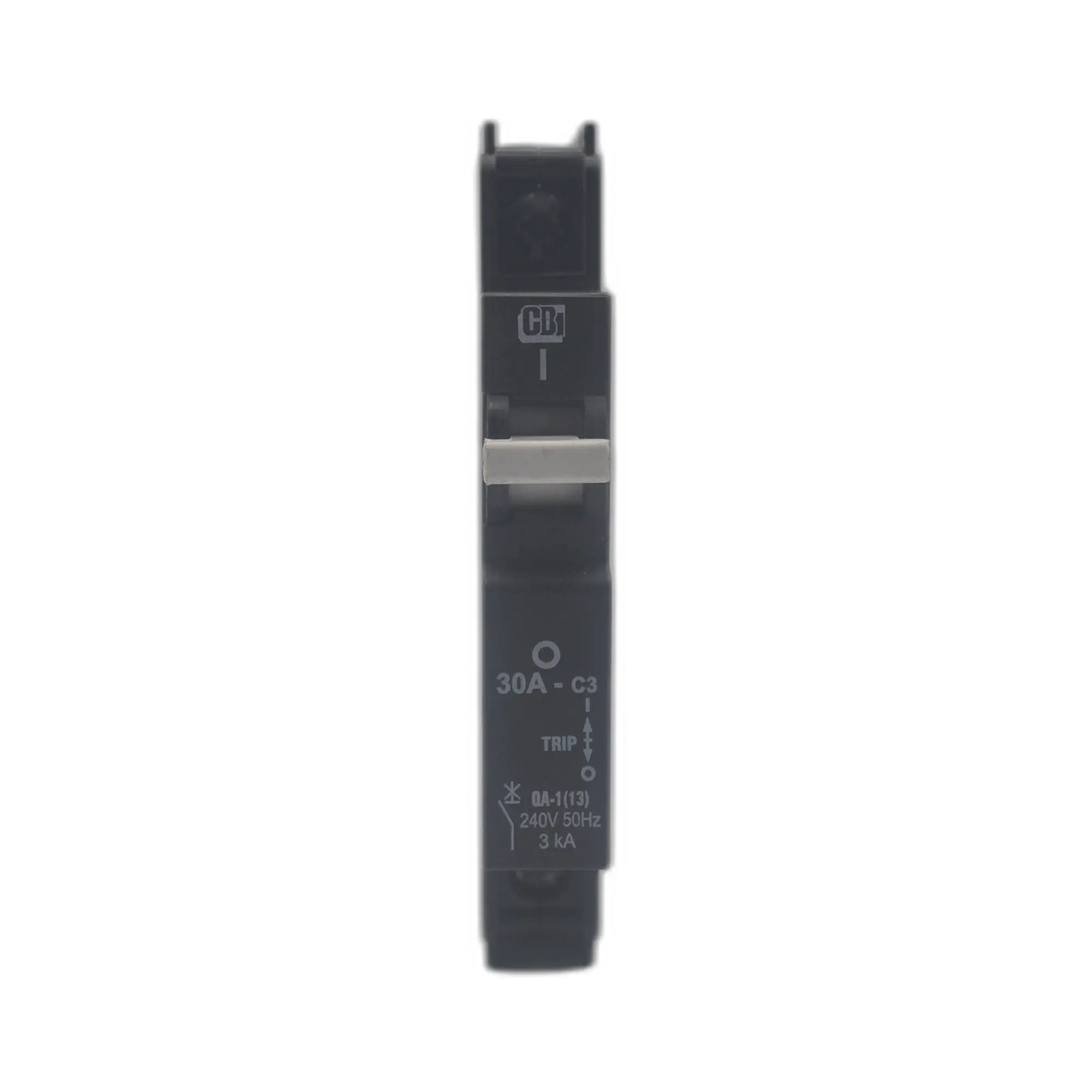

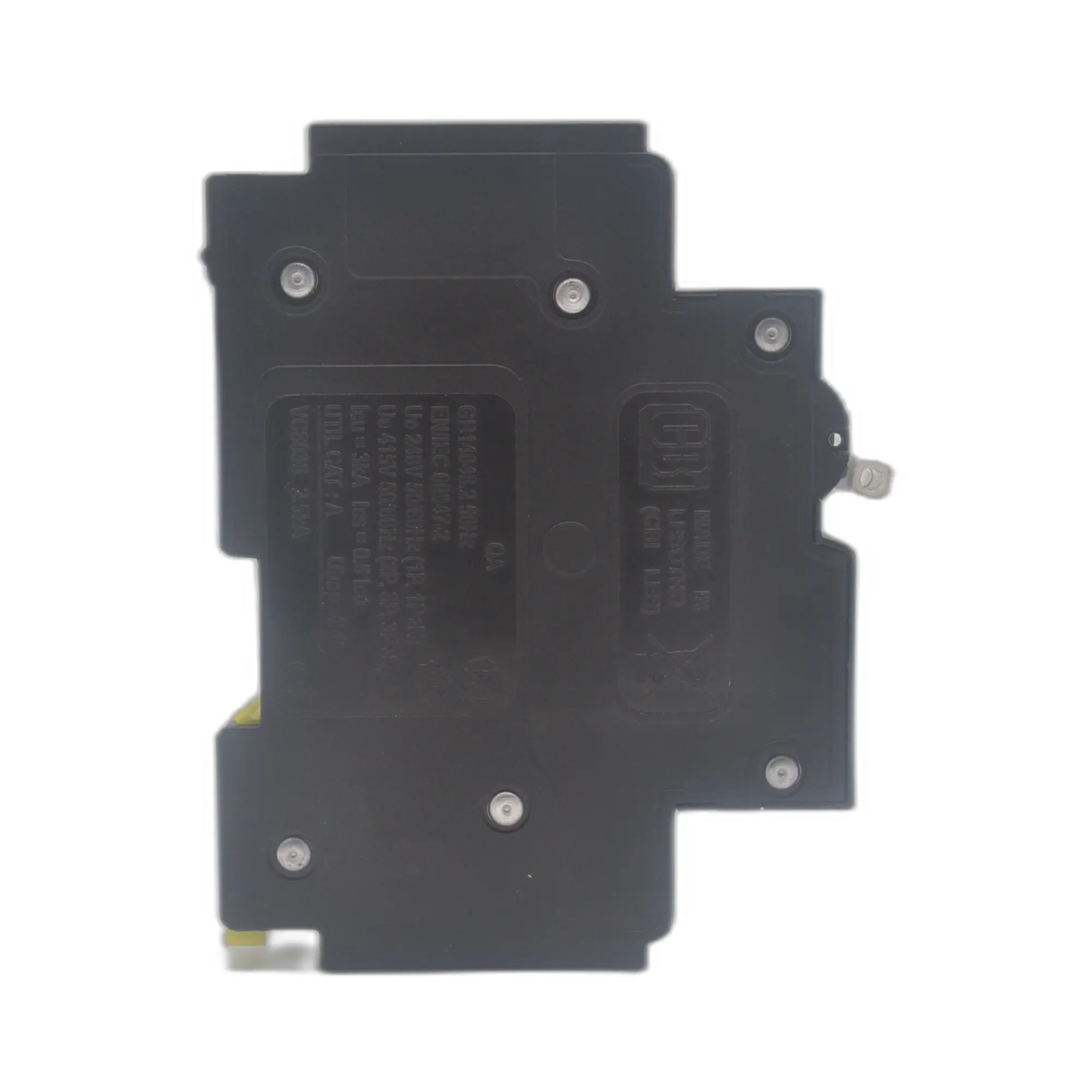

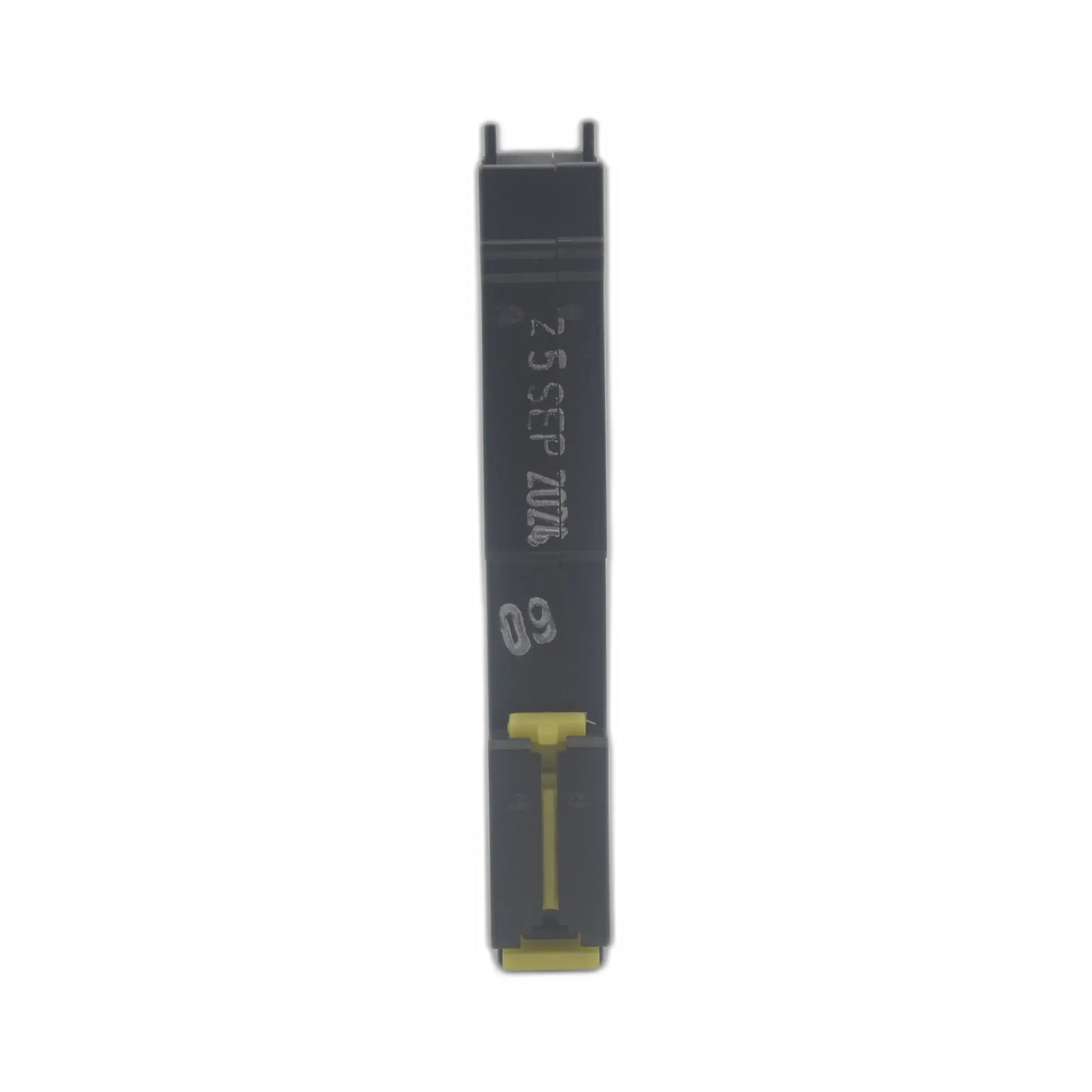

CBI CQA2130 QA(13) 30A 1-Pole 3 kA Mini-Rail Circuit Breaker, Curve 3 (240 Vac)
R278,30
- Description
Description
CBI CQA2130 QA(13) 30A 1-Pole 3 kA Mini-Rail Circuit Breaker, Curve 3 (240 Vac)
Compact, reliable protection for space-constrained panels
The CBI QA(13) is a hydraulic-magnetic miniature circuit breaker designed for mini-rail installations. At just 13 mm per module, it delivers precise, temperature-independent protection with a clear mid-trip indication.
Key Features
- Current rating: 30 A
- Poles: 1P (single pole)
- Operating voltage: 240 Vac
- Short-circuit rating: 3 kA (Curve 3, white handle)
- Hydraulic-magnetic technology with precision tripping characteristics
- 100% rating capability, independent of ambient temperature
- Ultra-compact 13 mm wide module; mini-rail mount with 57 mm front escutcheon (black)
- Trip indication with mid-trip position
- Suitable for electrical isolation
- Compliance: VC 8036 (SANS 556-1)
- Operating temperature range: -40 °C to +85 °C
- Endurance: 10,000 operations (1,500 electrical at rated current and voltage per IEC 60947-2)
- Terminals: 0.75–35 mm² conductors; 2.5 Nm torque
Applications
- AC branch circuit protection
- Telecom/datacom equipment
- Lighting control
- UPS equipment
- Alternative energy equipment
- Mobile power generation equipment
- Railway signalling equipment
- Residential and industrial equipment
Optional Accessories
- Handle lock (QFAP001)
- Surface mounting clips (SAAX000)
- Busbar (SABBM54)
- 57 mm escutcheon blank (2305608)
- 57 mm safety blank (SAEB000)
