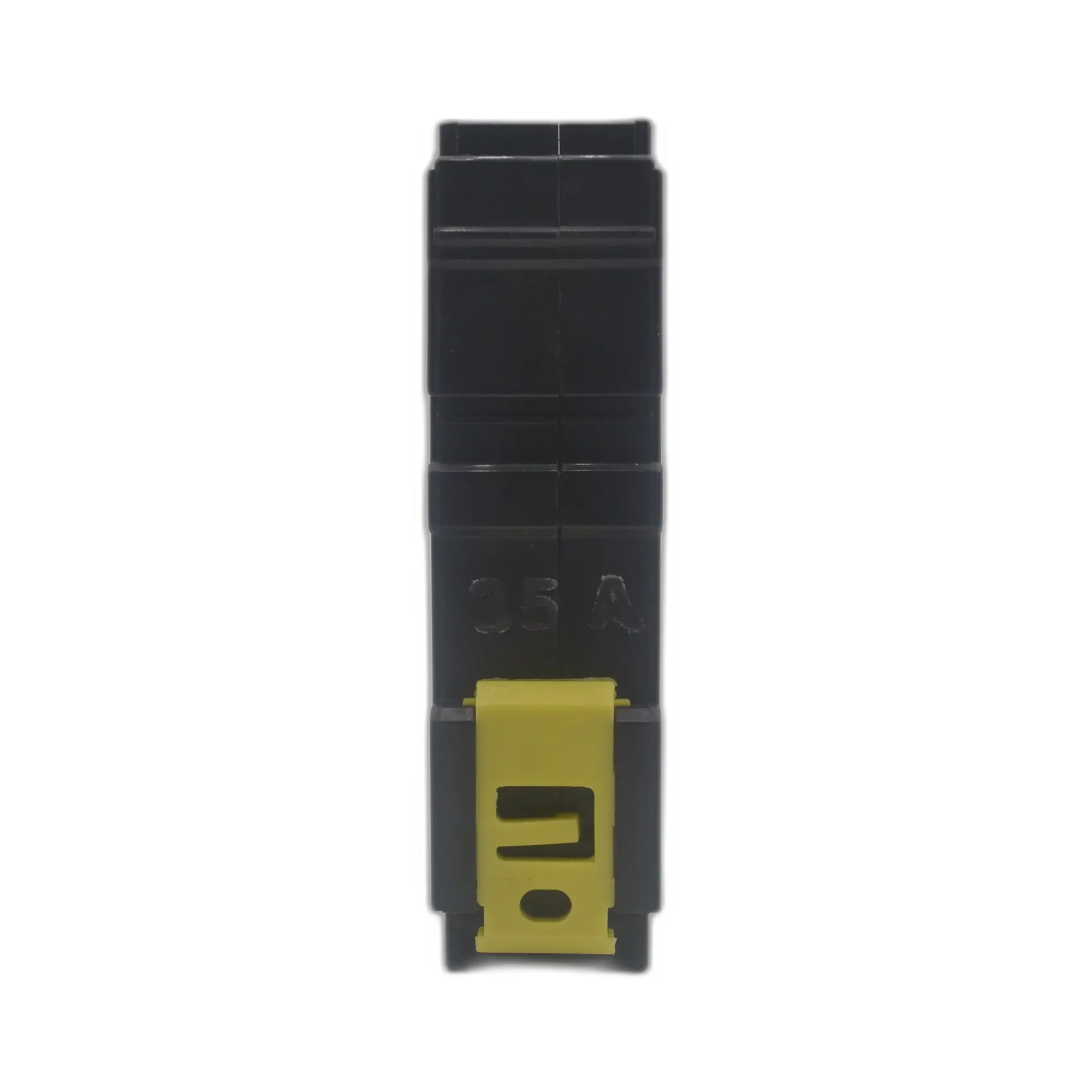

CBI CQF6135O QF-1(26) 35A 1-Pole 6 kA Hydraulic-Magnetic Circuit Breaker (Orange Handle) - Image 1

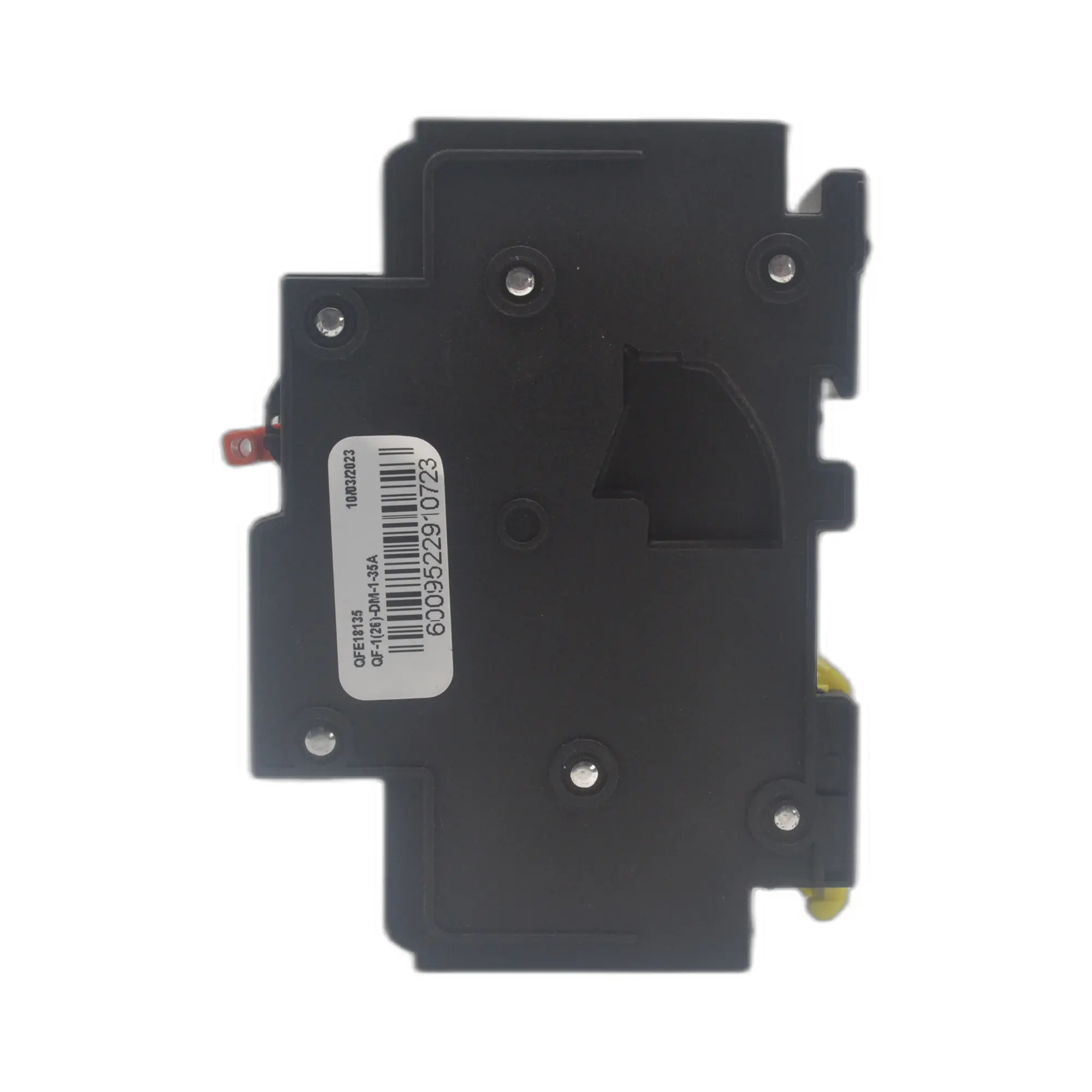

CBI CQF6135O QF-1(26) 35A 1-Pole 6 kA Hydraulic-Magnetic Circuit Breaker (Orange Handle) - Image 2

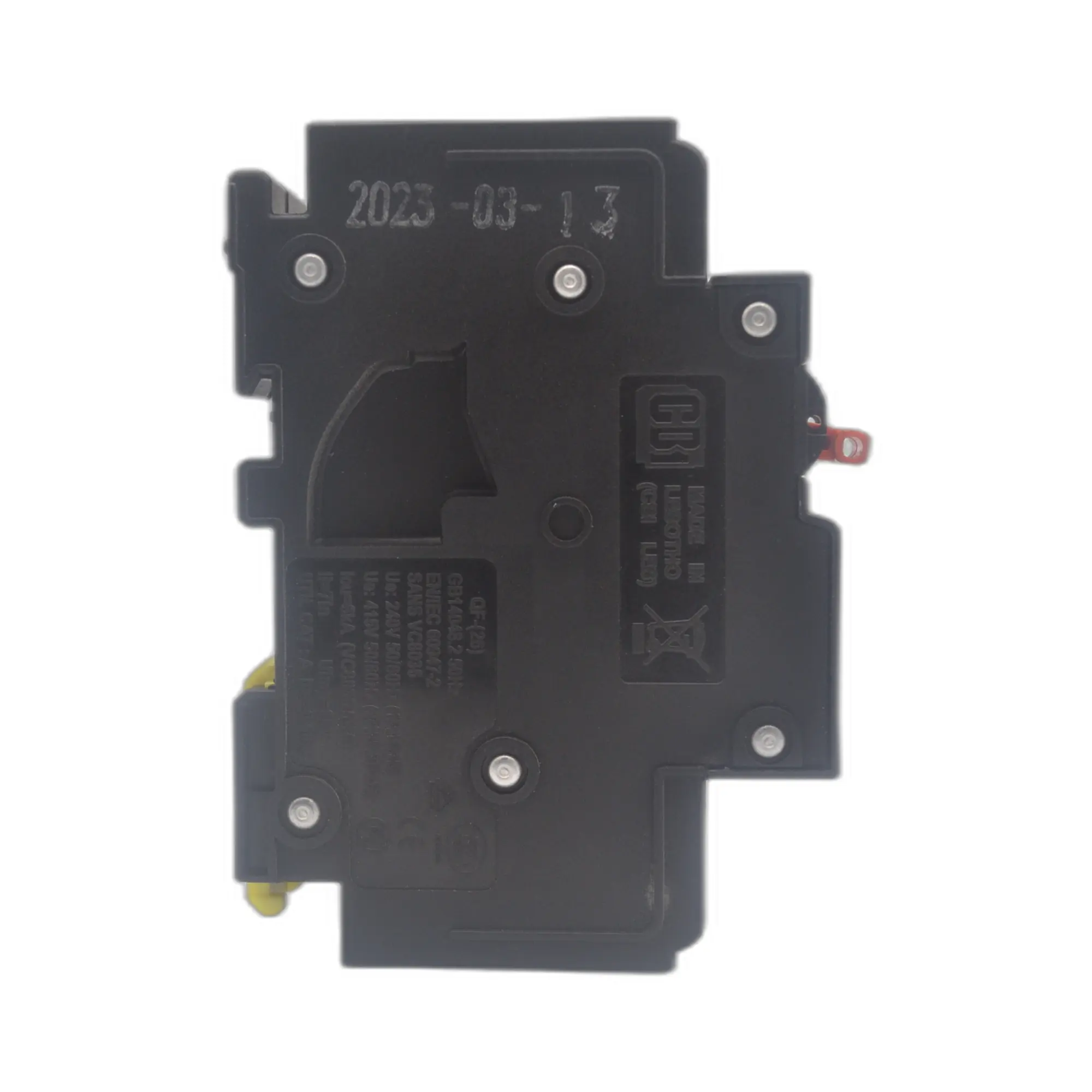

CBI CQF6135O QF-1(26) 35A 1-Pole 6 kA Hydraulic-Magnetic Circuit Breaker (Orange Handle) - Image 3

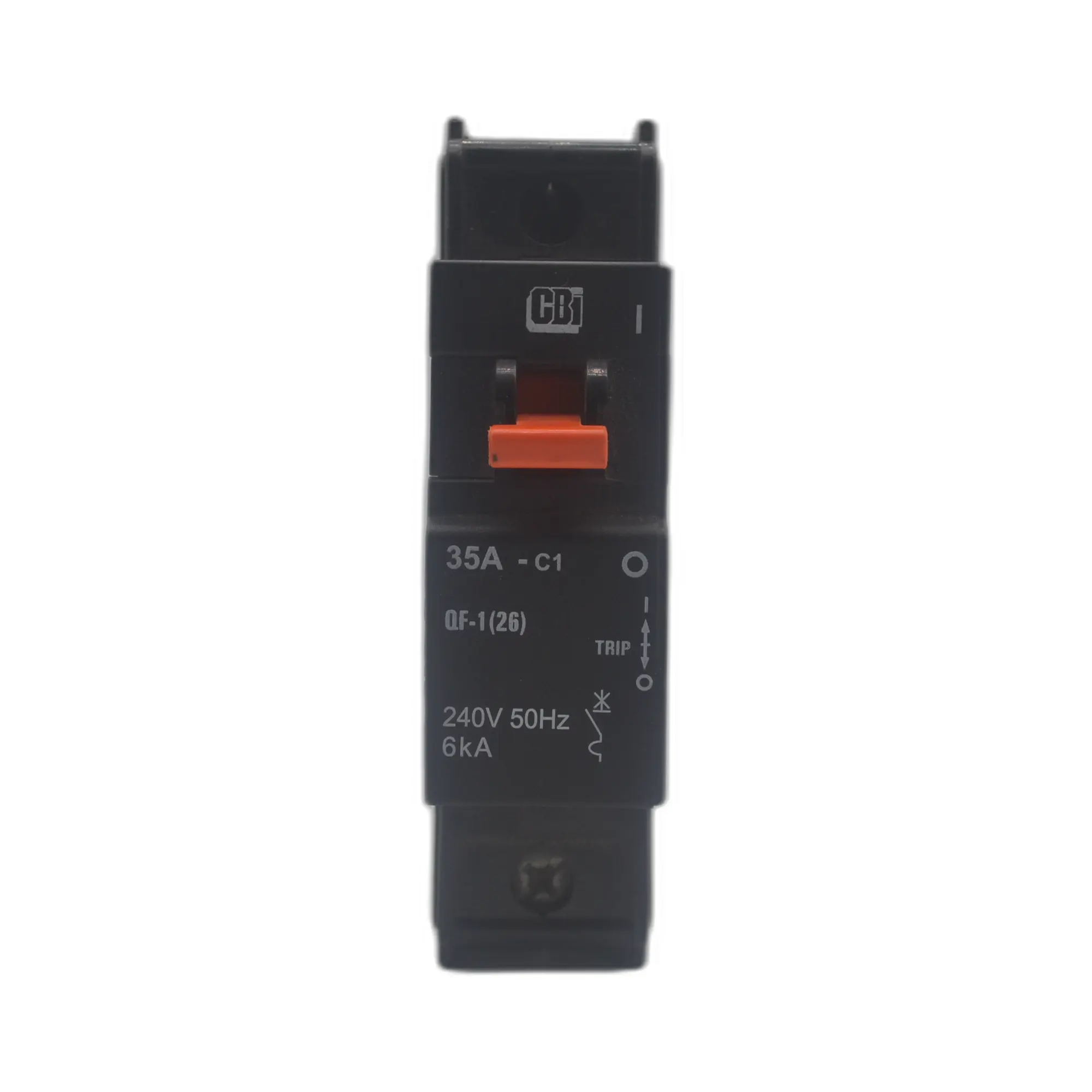

CBI CQF6135O QF-1(26) 35A 1-Pole 6 kA Hydraulic-Magnetic Circuit Breaker (Orange Handle) - Image 4
CBI CQF6135O QF-1(26) 35A 1-Pole 6 kA Hydraulic-Magnetic Circuit Breaker (Orange Handle) - Image 5

CBI CQF6135O QF-1(26) 35A 1-Pole 6 kA Hydraulic-Magnetic Circuit Breaker (Orange Handle)

CBI CQF6130 30A 1-Pole 6 kA Miniature Circuit Breaker
CBI CQF63100I 100A 3-Pole 6 kA Switch Disconnector (Isolator)

R386,53

Category:
CBI

Description

CBI CQF6135O QF-1(26) 35A 1-Pole 6 kA Hydraulic-Magnetic Circuit Breaker (Orange Handle)

Need reliable 35 A protection unaffected by temperature swings?

This QF(26)LR miniature circuit breaker uses hydraulic-magnetic technology to provide 100% rated performance independent of ambient temperature, with precise, repeatable tripping and clear mid-trip indication.

Key Features

  • Current rating: 35 A
  • Poles: 1
  • Breaking capacity: 6 kA
  • Time delay: Curve 1 (orange handle), high instantaneous trip 10–20 × In
  • Hydraulic-magnetic technology; 100% rating capability independent of ambient temperature
  • Mounting: Dual (DIN and mini rail) with 57 mm front
  • Module width: 26 mm per pole
  • Operating voltage: 240 Vac (1-pole)
  • Trip indication with mid-trip position
  • Suitable for electrical isolation
  • Approvals/Compliance: VC 8036; CE compliant; CCC approved
  • Operating temperature range: -40 °C to +85 °C
  • Endurance: 10,000 operations (1,500 electrical at rated current and voltage)

Applications

  • AC branch circuit protection (DIN / EN 60947-2)
  • Telecom/datacom and UPS equipment
  • Lighting control and alternative energy systems
  • Mobile power generation and railway signalling
  • Residential and industrial equipment

Optional Accessories

  • Handle lock – QFAP001
  • Surface mounting clips – 2096001
  • Busbar – 2121043
  • Escutcheon blank – SFEB000
  • Safety blank – SAEB000
